RF2001NS2DFH Datasheet PDF - ROHM Super Fast Recovery Diode Specs

RF2001NS2DFH - Super Fast Recovery Diode

Datasheet Summary

Features

1) Cathode common dual type 2) Low switching loss 3) Low VF ROHM : TO263S (D2PAK) JEITA : SC-83 1 : Manufacture Date.
Taping Dimensions (Unit : mm).
Construction Silicon epitaxial planar type TO263S.
Structure Cathode Anode Anode.
Absolute Maximum Ratings (Tc= 25°C) Parameter Symbol Conditions Limits Unit Repetitive peak reverse voltage VRM Duty≦0.5 200 V Reverse voltage Average current Non-repetitive forward surge current Operating junction temperature VR Io IFS.

Datasheet Details

Part number	RF2001NS2DFH
Manufacturer	ROHM
File Size	790.89 KB
Description	Super Fast Recovery Diode
Datasheet	RF2001NS2DFH Datasheet

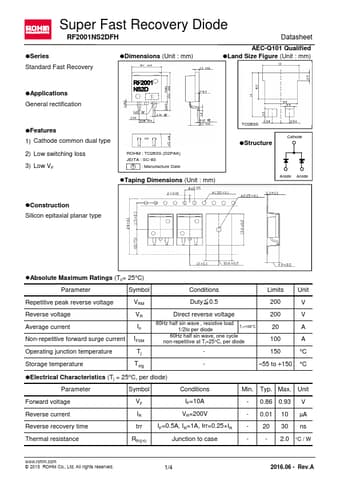

Additional preview pages of the RF2001NS2DFH datasheet.
