RF2001T2DFH - Fast Recovery Diode

Datasheet Summary

Features

  • 1) Cathode common type. (TO-220) 2) Ultra Low VF 3) Very fast recovery 4) Low switching loss.
  • Construction Silicon epitaxial planar.
  • Dimensions (Unit : mm) 10.0±0.3 　　　 0.1 .
  • Structure 4.5±0.3 　　　 0.1 2.8±0.2 　　　 0.1 (1) (2) (3) 5.0±0.2 8.0±0.2 12.0±0.2 13.5MIN 15.0±0.4 　 0.2 8.0 ① 1.2 1.3 0.8 (1) (2) (3) ROHM : TO220FN ① Manufacture Date 0.7±0.1 0.05 2.6±0.5.
  • Absoslute maximum ratings (Ta=25C) Parameter Symbol Limits Reverse voltage (repetitive peak) Reverse volt.

📥 Download Datasheet

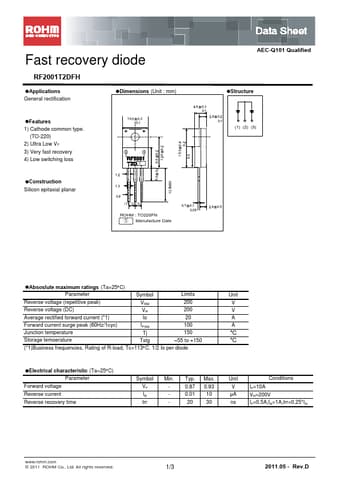

Datasheet preview – RF2001T2DFH
