RLD65MZT7 Datasheet - ROHM

RLD65MZT7 650nm low power single mode laser diode

650nm Red Single Mode Laser Diode RLD65MZT7 Datasheet Application Optical disk pickup Sensor Etc. Outline view Merit Single mode Φ5.6 metal stem Absolute Maximum Ratings (Tc=25°C) Parameter Symbol Optical output Po Reverse voltage LD PIN PD Vr Vr(PD) Operating temp. Top Storage temp. Tstg Ratings 7 2 30 -10 to 70 -40 to 85 Unit mW V V °C °C Characteristics (Tc=25°C) Parameter Symbol Conditions MIN. Threshold current Ith －－ Operating current Iop Po=5mW － Operating v.

RLD65MZT7 Datasheet (706.95 KB)

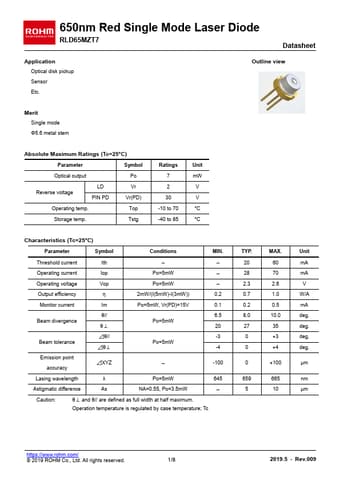

Preview of RLD65MZT7 PDF
RLD65MZT7 Datasheet Preview Page 2 RLD65MZT7 Datasheet Preview Page 3

Datasheet Details

Part number:

RLD65MZT7

Manufacturer:

ROHM ↗

File Size:

706.95 KB

Description:

650nm low power single mode laser diode.
