RLD65MZT2 - Combination red laser diode

Product Overview

Rohm

Part number	RLD65MZT2
Manufacturer	ROHM
File Size	122.03 KB
Description	Combination red laser diode
Datasheet	RLD65MZT2 Datasheet

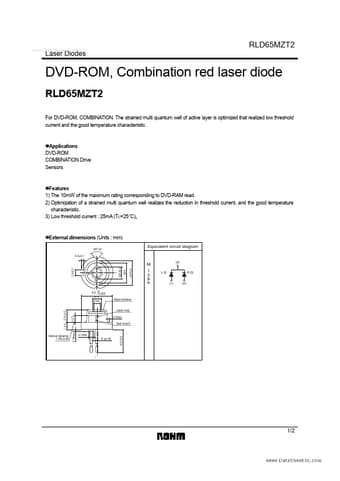

Additional preview pages of the RLD65MZT2 datasheet.

1) The 10mW of the maximum rating corresponding to DVD-RAM read. 2) Optimization of a strained multi quantum well realizes the reduction in threshold current, and the good temperature characteristic. 3) Low threshold current : 25mA (TC=25°C)。 !External dimensions (Units : mm) 90°±2° 0.4±0.1 1 Equivalent circuit diagram 3 2 M t y p e (3) L. D. (1) (2) P. D. 1.0±0.1 φ2.0±0.2 0 5.6 +.
0.025 φ1.6 φ1min. Glass window 1.2±0.1 2.3±0.5 Laser chip (1.27) 0.5min. Sub mount 0.5max. 3.
