SML-P24MUW - LED

Name: SML-P24MUW
SKU: SML-P24MUW-1369786

ROHM

The SML-P24MUW by ROHM is a LED. Below is the official datasheet preview.

Datasheet Details

Part number	SML-P24MUW
Manufacturer	ROHM
File Size	371.69 KB
Description	LED
Datasheet	SML-P24MUW-Rohm.pdf

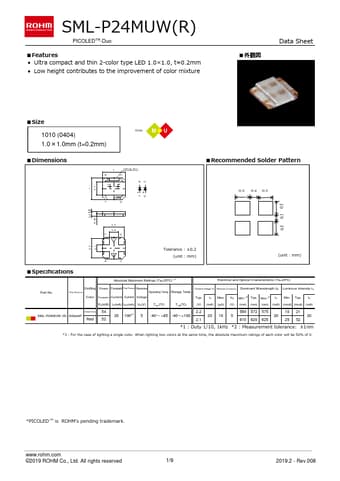

Additional preview pages of the SML-P24MUW datasheet.

Ultra compact and thin 2-color type LED 1.0×1.0, t=0.2mm.
Low height contributes to the improvement of color mixture.
Data Sheet.
Size 1010 (0404) 1.0×1.0mm (t=0.2mm) Color MU.
Dimensions 1 0.6 Cathode Mark 1 (4) (3) GR (4) (3) (1) (2) GR (1) (2).
Recommended Solder Pattern 0.5 0.4 0.5 0.5 0.3 0.5 +0.05 0.2 -0.02 (0.08) 0.9 0.4 (1) (2) 0.9 0.3 (4) (3) Tolerance : ±0.2 (unit : mm) (unit : mm).
Speciﬁcations Absolute Maximum Ratings (Ta=25ºC).
