CFB200, 200 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT

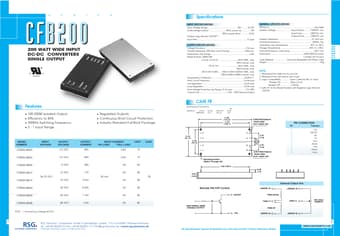

S E R I E S 200 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT ® US E176177 Voltage Accuracy : ±1% max.

Transient Response :25% Step Load Change <500µ sec.

External Trim Adj.

Range ±10% Ripple & Noise, 20MHz BW 2.5V & 3.3V & 5V 40mV RMS., max.

100mV pk-pk, max.

12V & 15V 60mV RMS., max.

150mV pk-pk, max.

24V & 28V & 48V 100mV/150mV/200mV RMS., max.

240mV/280mV/480mV pk-pk, max.

Temperature Coefficient ±0.03%/˚C Short Circuit ProtectionContinuous Line Regulation1 ±0.2% max.

Load Regulat

CFB200 Features

* 100-200W Isolated Output Efficiency to 85% 300KHz Switching Frequency 2 : 1 Input Range

* Regulated Outputs

* Continuous Short Circuit Protection

* Industry Standard Full-Brick Package CASE FB All Dimensions In Inches(mm) Tolerances In
