MBTA44 NPN EPITAXIAL PLANAR TRANSISTOR

MBTA44 Description

MBTA44 NPN EPITAXIAL PLANAR TRANSISTOR MBTA44 S-MBTA44 We declare that the material of product compliance with RoHS requirements..
The MBTA44 is designed for application that requires high voltage. High Breakdown Voltage: VCEO=400(Min. Compl.

MBTA44 Features

* High Breakdown Voltage: VCEO=400(Min. ) at IC=1mA
* Complementary to MBTA94

MBTA44 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. DEVICE MARKING MBTA44 = 3D S-MBTA44 = 3D SOT23 COLLECTOR 3 1 BASE Absolute Maximum Ratings 2 EMITTER
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maxi

📥 Download Datasheet

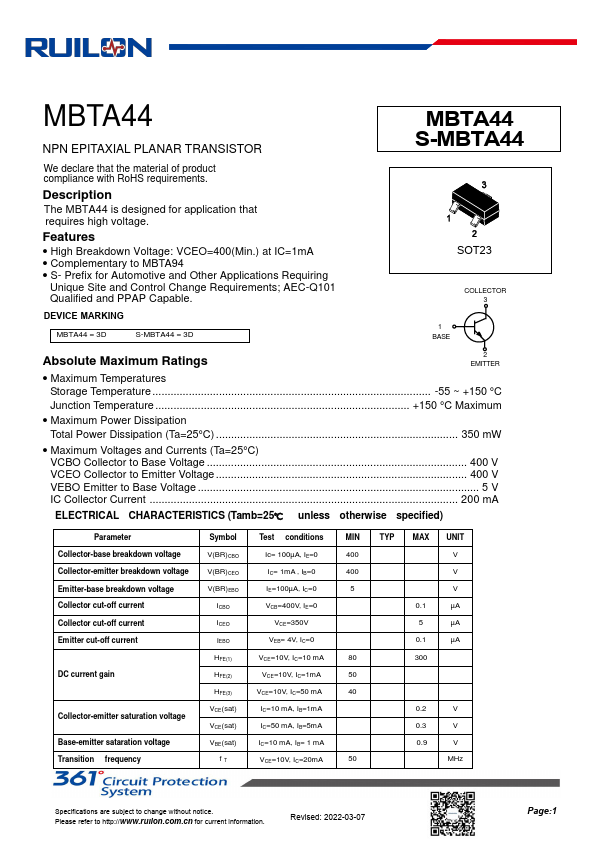

Preview of MBTA44 PDF

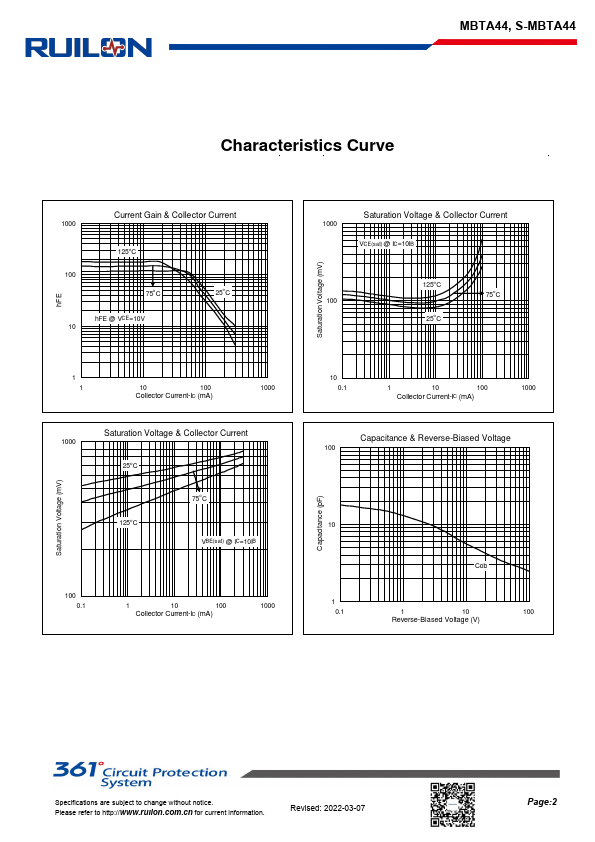

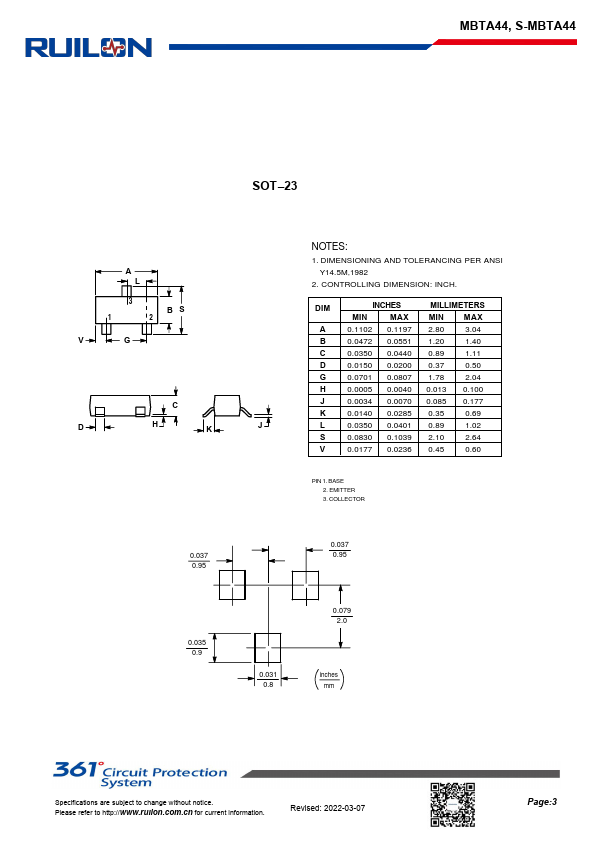

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBTA44
Manufacturer
RUILON
File Size
297.00 KB
Datasheet
MBTA44-RUILON.pdf
Description
NPN EPITAXIAL PLANAR TRANSISTOR
