MSZ5229B, MSZ5221B Datasheet - RUILON

MSZ5229B, MSZ5221B, 500mW Zener Voltage Regulators

Zener Voltage Regulators 500 mW SOD *123 Surface Mount Three complete series of Zener diodes are offered in the convenient, surface mount pla.

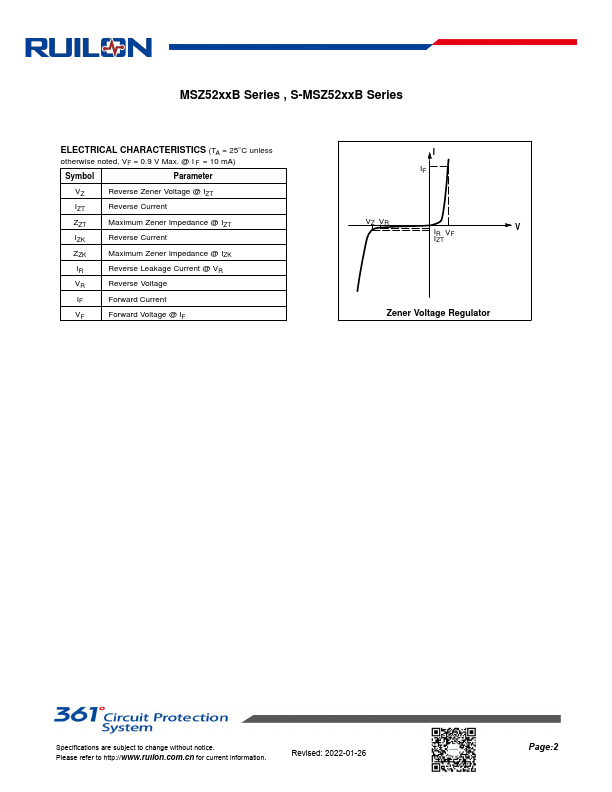

datasheet Preview Page 1 from Datasheet4u.com

MSZ5221B-RUILON.pdf

MSZ5229B Datasheet Preview — This datasheet PDF includes multiple part numbers: MSZ5229B, MSZ5221B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSZ5229B, MSZ5221B

Manufacturer:

RUILON

File Size:

395.89 KB

Description:

500mW Zener Voltage Regulators

Note:

This datasheet PDF includes multiple part numbers: MSZ5229B, MSZ5221B.
Please refer to the document for exact specifications by model.

Features

* 500 mW Rating on FR
* 4 or FR
* 5 Board
* Wide Zener Reverse Voltage Range
* 2.4 V to 110 V
* Package Designed for Optimal Automated Board Assembly

Applications

* General Purpose, Medium Current
* ESD Rating of Class 3 (>16 kV) per Human Body Model
* We declare that the material of product compliance with RoHS requirements.
* S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
