RS164
FEATURES
- 8-Bit Serial Input, Parallel Output Shift
- Power-Supply Range: 1.65V to 5.5V
- Low Power Consumption: 8μA(Max)
- Low Input Current: 1μA(Max)
- Gated Serial Data Input
- Asynchronous Master Reset
- Extended Temperature: -40°C to +125°C
2 APPLICATIONS
- IP Routers
- Programable Logic Controllers
- Enterprise and municatios
- Industrial
- Appliances
- LED Displays
- Output Expander
3 DESCRIPTIONS

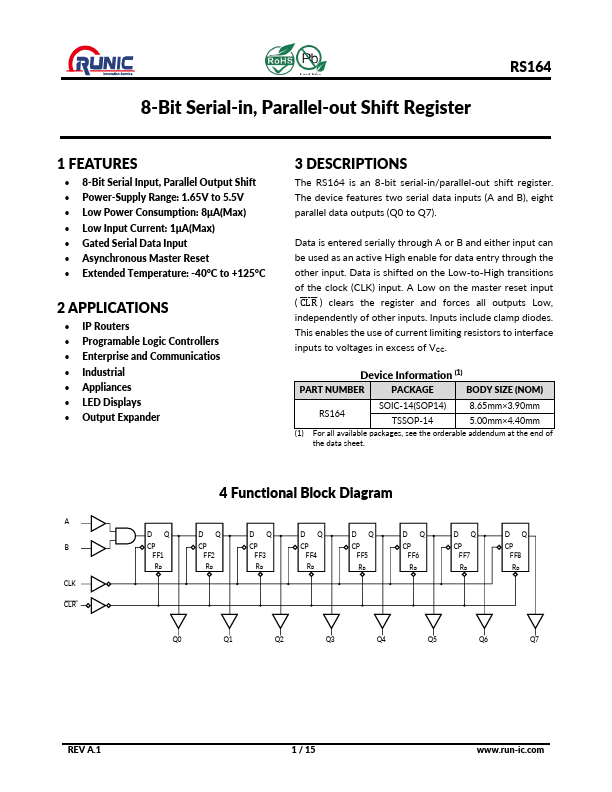

The RS164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (A and B), eight parallel data outputs (Q0 to Q7).
Data is entered serially through A or B and either input can be used as an active High enable for data entry through the other input. Data is shifted on the Low-to-High transitions of the clock (CLK) input. A Low on the master reset input ( C̅̅L̅̅R̅ ) clears the register and forces all outputs Low, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to...
