RS1G14-Q1 Datasheet - RUNIC

RS1G14-Q1 Single Schmitt-Trigger Inverter

The RS1G14-Q1 Single Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The RS1G14-Q1 device contains one inverter and performs the Boolean function Y= A̅ . The device functions as an independent inverter with Schmitttrigger inputs, so the device has different input threshold lev.

RS1G14-Q1 Features

* Qualified for Automotive Applications

* AEC-Q100 Qualified with the Grade 1

* Operating Voltage Range:1.65V to 5.5V

* Low Power Consumption:1µA (Max)

* Operating Temperature Range: -40°C to +125°C

* Input Accept Voltage to 5.5V

* High Output

RS1G14-Q1-RUNIC.pdf

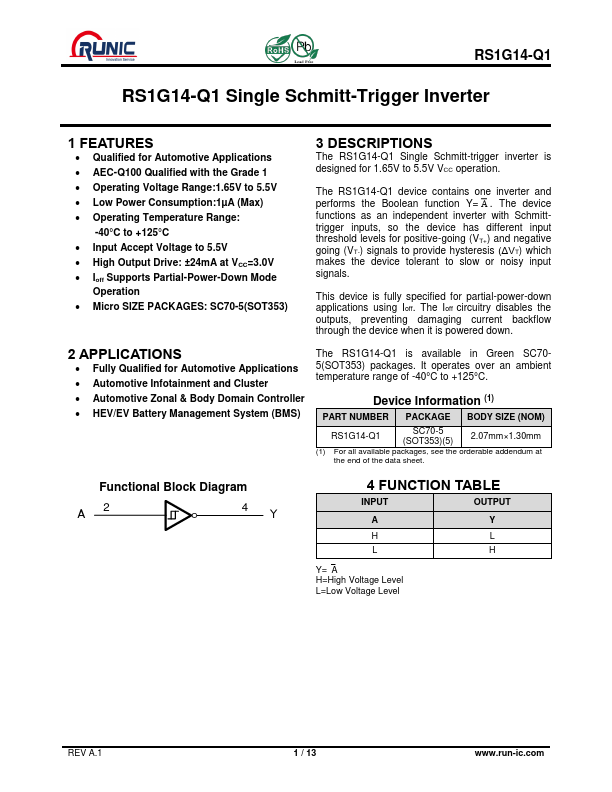

RS1G14-Q1 Datasheet Preview — Preview of RS1G14-Q1 PDF

Datasheet Details

Part number:

RS1G14-Q1

Manufacturer:

RUNIC

File Size:

361.88 KB

Description:

Single schmitt-trigger inverter.
