RS1G74 Single Positive-Edge-Triggered D-Type Flip-Flop

RUNIC

Description

RS1G74 RS1G74 Single Positive-Edge-Triggered D-Type Flip-Flop with Clear and Preset 1 .
The RS1G74 single positive-edge-triggered D-type flipflop is designed for 1.

📥 Download Datasheet

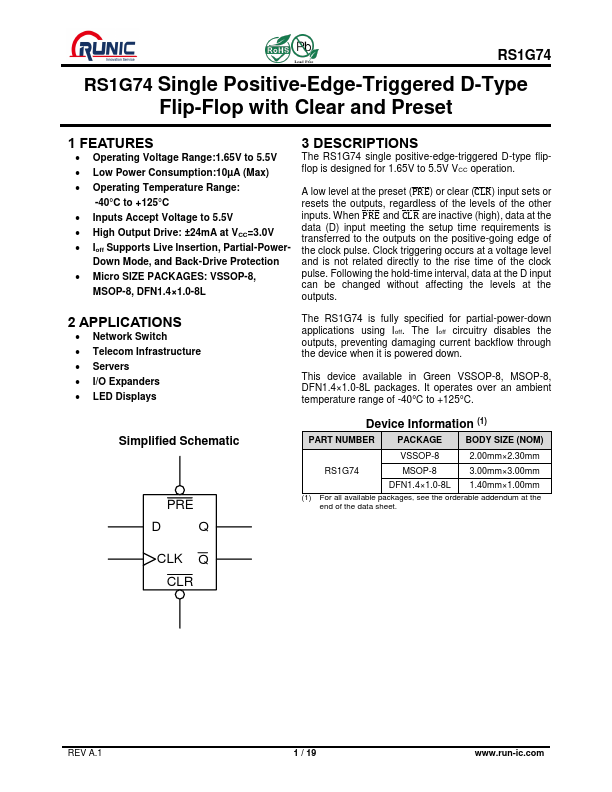

RS1G74 Datasheet Preview — Preview of RS1G74 PDF

Datasheet Specifications

Part number: RS1G74
Manufacturer: RUNIC
File Size: 463.06 KB
Datasheet: RS1G74-RUNIC.pdf
Description: Single Positive-Edge-Triggered D-Type Flip-Flop

Features

* Operating Voltage Range:1.65V to 5.5V
* Low Power Consumption:10µA (Max)
* Operating Temperature Range: -40°C to +125°C
* Inputs Accept Voltage to 5.5V
* High Output Drive: ±24mA at VCC=3.0V
* Ioff Supports Live Insertion, Partial-Power- Down Mode, a

Applications

* Network Switch
* Telecom Infrastructure
* Servers
* I/O Expanders
* LED Displays The RS1G74 is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device w
