RS6331P, CMOS Operational Amplifier

RS6331P, RS6332P, RS6334P 1.1MHz, Precision, Rail-to-Rail I/O CMOS Operational Amplifier .
The RS6331P, RS6332P, RS6334P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power con.

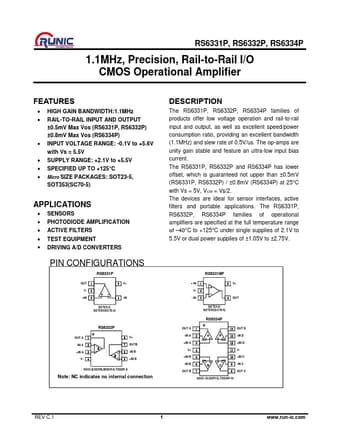

datasheet Preview Page 1 from Datasheet4u.com

RS6331P-RUNIC.pdf

RS6331P Datasheet Preview — Preview of RS6331P PDF

Datasheet Details

Part number:

RS6331P

Manufacturer:

RUNIC

File Size:

471.87 KB

Description:

CMOS Operational Amplifier

Features

* HIGH GAIN BANDWIDTH:1.1MHz
* RAIL-TO-RAIL INPUT AND OUTPUT ±0.5mV Max Vos (RS6331P, RS6332P) ±0.8mV Max Vos (RS6334P)
* INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
* SUPPLY RANGE: +2.1V to +5.5V
* SPECIFIED UP TO +125°C
* Micro SIZE PACKAGES:

Applications

* SENSORS
* PHOTODIODE AMPLIFICATION
* ACTIVE FILTERS
* TEST EQUIPMENT
* DRIVING A/D CONVERTERS PIN CONFIGURATIONS RS6331P OUT 1 V- 2 +IN 3 +- 5 V+ 4 -IN SO T2 3-5/ SO T3 53 (S C70-5) RS6332P OUT A 1 -IN A 2 A +IN A 3 + V- 4 8 V+ 7 OUTB 6 -IN B B + 5 +
