RS6332 - Rail-to-Rail I/O CMOS Operational Amplifier

This page provides the datasheet information for the RS6332, a member of the RS6331S Rail-to-Rail I/O CMOS Operational Amplifier family.

Datasheet Summary

Description

The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us.

Features

HIGH GAIN.

Datasheet Details

Part number	RS6332
Manufacturer	RUNIC
File Size	476.06 KB
Description	Rail-to-Rail I/O CMOS Operational Amplifier
Datasheet	RS6332 Datasheet

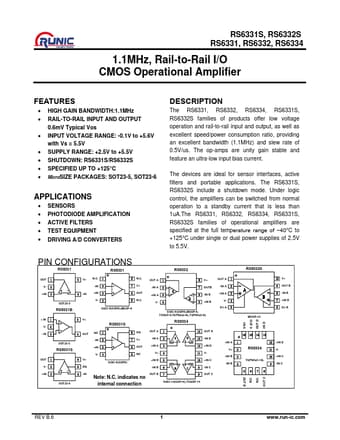

Additional preview pages of the RS6332 datasheet.

📁 Similar Datasheet

RS6-0505D - DC/DC Converter (RECOM)

RS6-0505S - DC/DC Converter (RECOM)

RS6-0512D - DC/DC Converter (RECOM)

RS6-0512S - DC/DC Converter (RECOM)

RS6-0515D - DC/DC Converter (RECOM)

RS6-0515S - DC/DC Converter (RECOM)

RS6-053.3S - DC/DC Converter (RECOM)

RS6-1205D - DC/DC Converter (RECOM)

RS6-1205S - DC/DC Converter (RECOM)

RS6-1212D - DC/DC Converter (RECOM)

Full PDF Text Transcription

Click to expand full text

RS6331S, RS6332S RS6331, RS6332, RS6334 1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES • HIGH GAIN BANDWIDTH:1.1MHz • RAIL-TO-RAIL INPUT AND OUTPUT 0.6mV Typical Vos • INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V • SUPPLY RANGE: +2.5V to +5.5V • SHUTDOWN: RS6331S/RS6332S • SPECIFIED UP TO +125°C • MicroSIZE PACKAGES: SOT23-5, SOT23-6 APPLICATIONS • SENSORS • PHOTODIODE AMPLIFICATION • ACTIVE FILTERS • TEST EQUIPMENT • DRIVING A/D CONVERTERS DESCRIPTION The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us.
