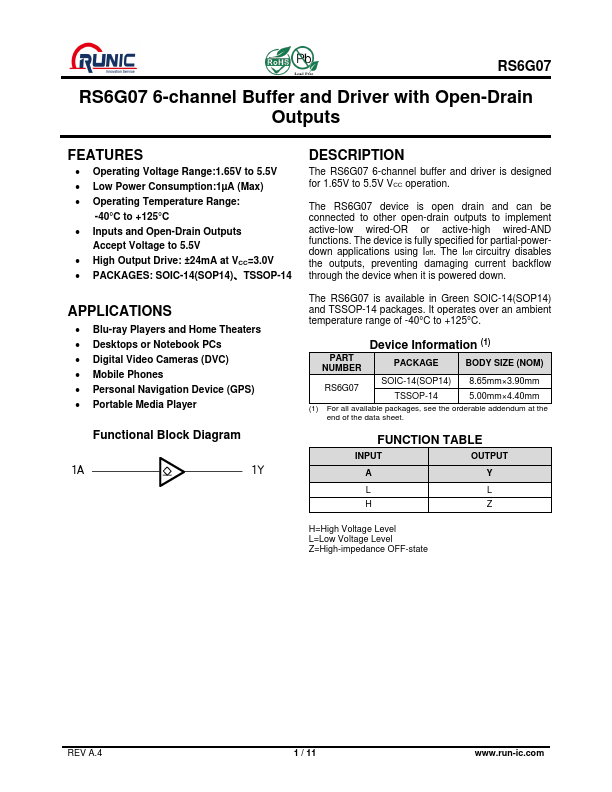

Preview of RS6G07 PDF

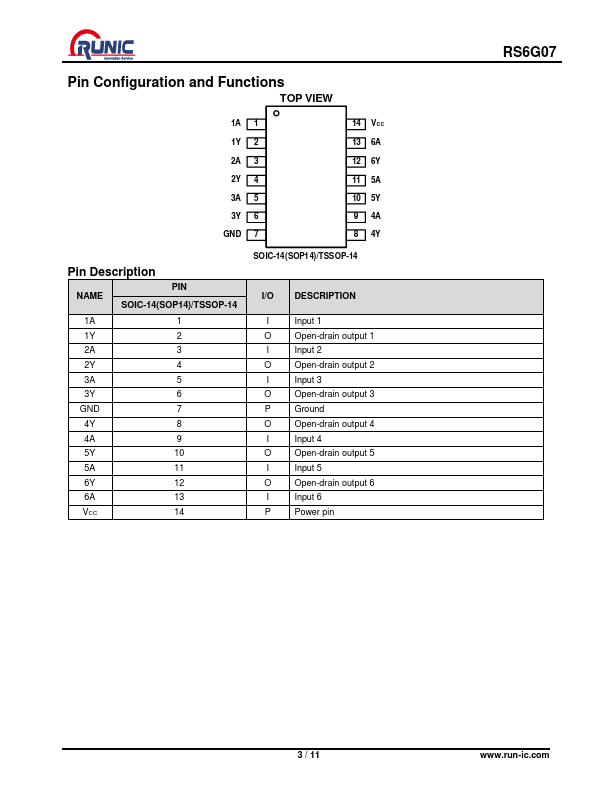

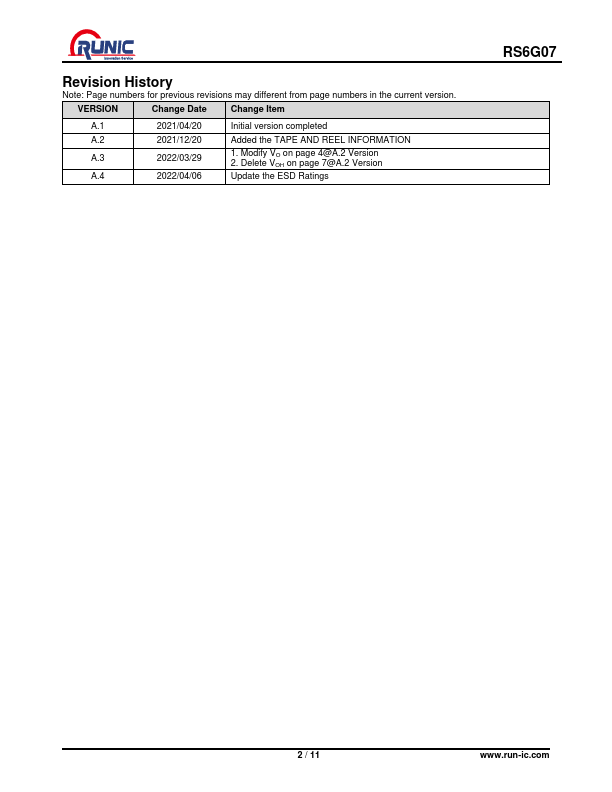

RS6G07 Datasheet Preview Page 2 RS6G07 Datasheet Preview Page 3

Datasheet Details

Part number:

RS6G07

Manufacturer:

RUNIC

File Size:

322.15 KB

Description:

6-channel buffer and driver.

RS6G07, 6-channel Buffer and Driver

The RS6G07 6-channel buffer and driver is designed for 1.65V to 5.5V VCC operation.

The RS6G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

The device is fully specified for partial-powerdown applications

RS6G07 Features

* Operating Voltage Range:1.65V to 5.5V

* Low Power Consumption:1µA (Max)

* Operating Temperature Range: -40°C to +125°C

* Inputs and Open-Drain Outputs Accept Voltage to 5.5V

* High Output Drive: ±24mA at VCC=3.0V

* PACKAGES: SOIC-14(SOP14)、TSSOP-14
