RS806 - Supply Voltage Supervisor

RUNIC

📥 Download Datasheet

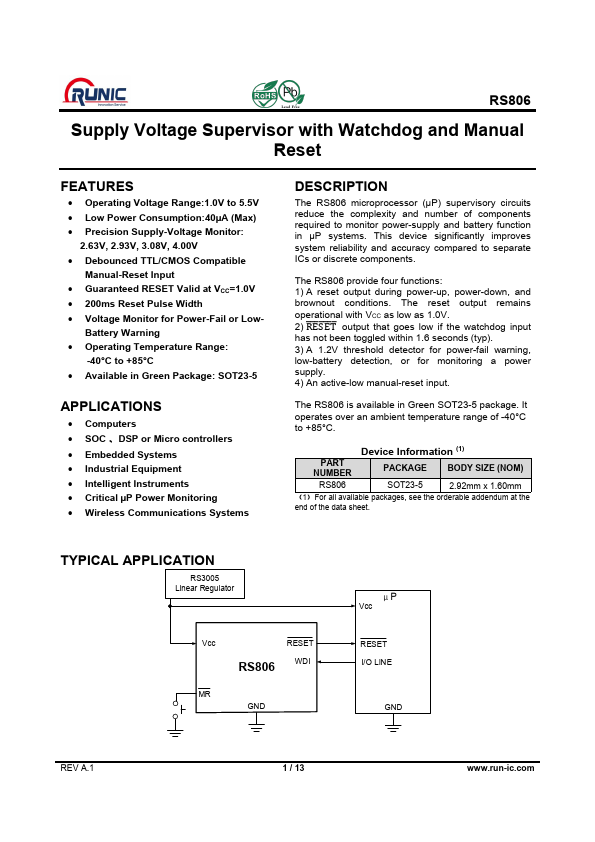

RS806 Datasheet Preview — Preview of RS806 PDF

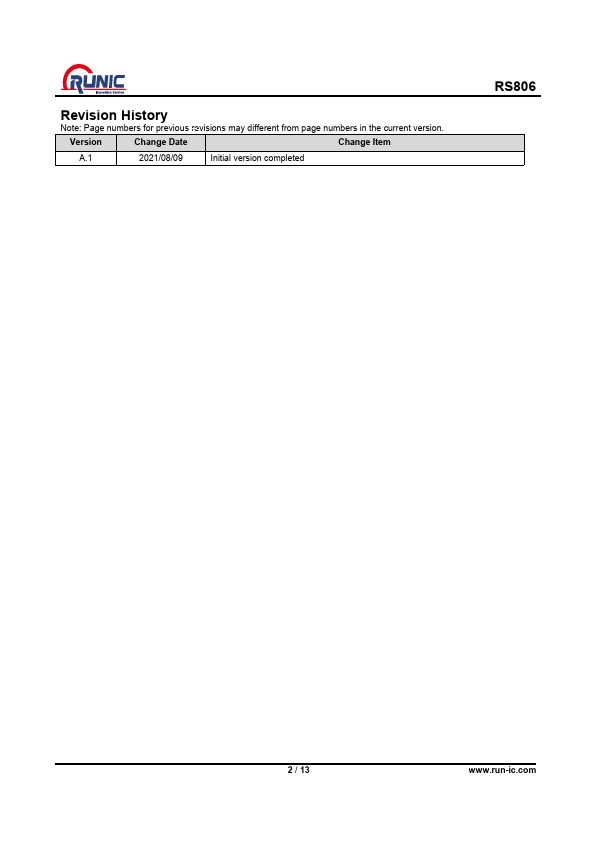

datasheet Preview Page 2

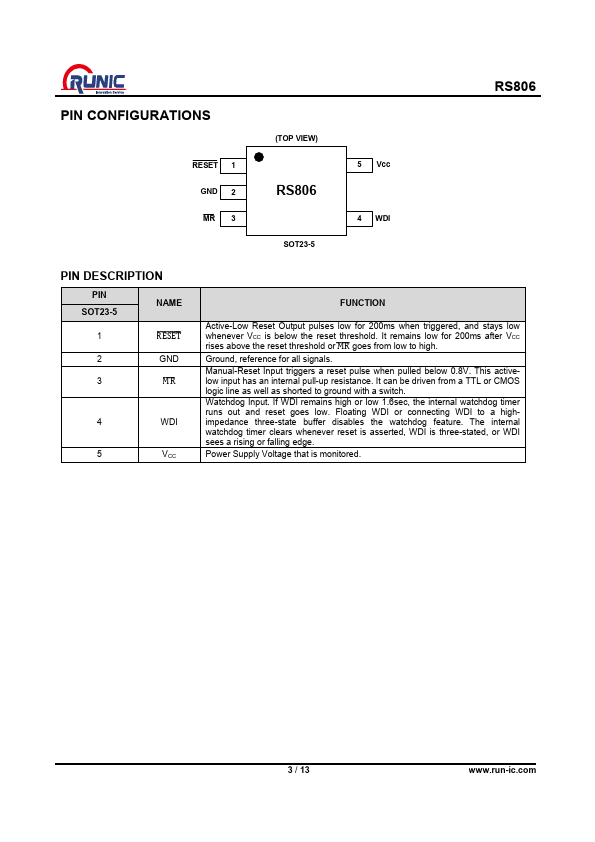

datasheet Preview Page 3

Datasheet Details

Part number	RS806
Manufacturer	RUNIC
File Size	1.53 MB
Description	Supply Voltage Supervisor
Datasheet	RS806-RUNIC.pdf

RS806 Product details

Description

The RS806 microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery function in µP systems.

Features

Operating Voltage Range:1.0V to 5.5V.
Low Power Consumption:40µA (Max).
Precision Supply-Voltage Monitor: 2.63V, 2.93V, 3.08V, 4.00V.
Debounced TTL/CMOS Compatible Manual-Reset Input.
Guaranteed RESET Valid at VCC=1.0V.
200ms Reset Pulse Width.
Voltage Monitor for Power-Fail or Low- Battery Warning.
Operating Temperature Range: -40°C to +85°C.
Available in Green Package: SOT23-5.
