RY9320 - 28V 2A 500KHz ECOT PSM Sync Step-Down Regulator

RYCHIP

📥 Download Datasheet

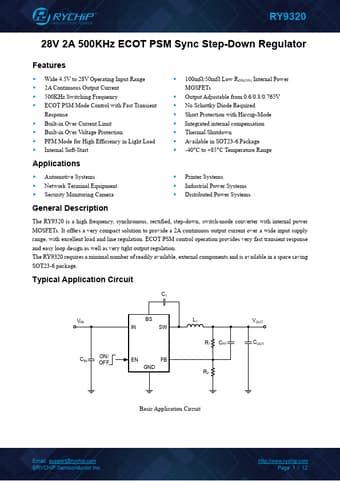

RY9320 Datasheet Preview — Preview of RY9320 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RY9320
Manufacturer	RYCHIP
File Size	0.95 MB
Description	28V 2A 500KHz ECOT PSM Sync Step-Down Regulator
Datasheet	RY9320-RYCHIP.pdf

RY9320 Product details

Description

The RY9320 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

Features

Wide 4.5V to 28V Operating Input Range.
2A Continuous Output Current.
500KHz Switching Frequency.
ECOT PSM Mode Control with Fast Transient Response.
Built-in Over Current Limit.
Built-in Over Voltage Protection.
PFM Mode for High Efficiency in Light Load.
Internal Soft-Start.
100mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs.
Output Adjustable from 0.6/0.8/0.765V.
No Schottky Diode Required.
