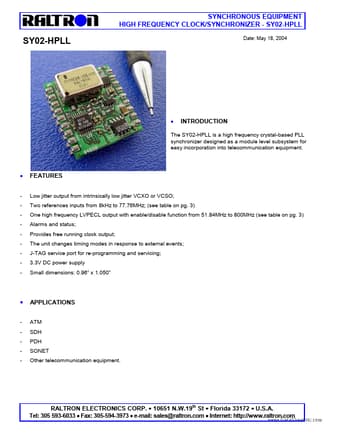

SY02-HPLL SYNCHRONOUS EQUIPMENT CLOCK REGENERATOR

The SY02-HPLL is a High Frequency Phase Lock Loop has been designed as a module level subsystem for easy incorporation into telecommunication equipment. The module generates the high frequency (up to 622.08MHz) output from a low jitter VCXO or VCSO (SAW based oscillators). The output can be disable.

SY02-HPLL Features

* Low jitter output from intrinsically low jitter VCXO or VCSO; Two references inputs from 8kHz to 77.76MHz; (see table on pg. 3) One high frequency LVPECL output with enable/disable function from 51.84MHz to 800MHz (see table on pg. 3) Alarms and status; Provides free running clock output; The unit c

SY02-HPLL Datasheet (338.35 KB)
