SY02-MFTP Datasheet - Raltron Electronics

SY02-MFTP SYNCHRONOUS EQUIPMENT CLOCK REGENERATOR

The SY02-MFTP is a High Frequency Phase Lock Loop has been designed as a module level subsystem for easy incorporation into telecommunication equipment. The module generates the high frequency (up to 170MHz) output from a low jitter VCXO (Crystal Based Oscillator. The output can be disabled externa.

SY02-MFTP Features

* Low jitter output from intrinsically low jitter VCXO ; User Selected one HCMOS Input frequency Up to 77.76MHz One high frequency LVPECL output with a complimentary port and enable/disable function Up to 800MHz (pre-select frequency value

* upon order) - Alarms status and VCXO monitor; The u

SY02-MFTP Datasheet (97.27 KB)

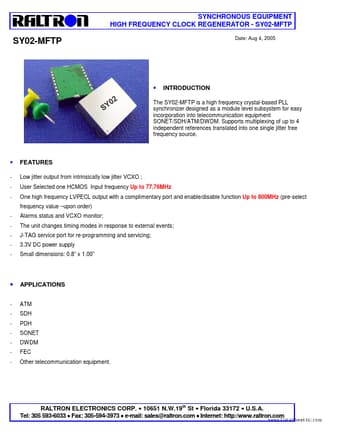

Preview of SY02-MFTP PDF

Datasheet Details

Part number:

SY02-MFTP

Manufacturer:

Raltron Electronics

File Size:

97.27 KB

Description:

Synchronous equipment clock regenerator.
