SY02-PLL Datasheet, Regenerator, Raltron Electronics

SY02-PLL Features

  • Regenerator Low jitter output from intrinsically low jitter VCXO; Four selectable references inputs: 8, 16, 32 and 64KHz; Alarms and status; Buffered reference output; Tri-state (high impedance) re

PDF File Details

Part number:

SY02-PLL

Manufacturer:

Raltron Electronics

File Size:

261.63kb

Download:

📄 Datasheet

Description:

Synchronous equipment clock regenerator. The SY02-PLL is a Phase Lock Loop has been designed as a module level subsystem for easy incorporation into telecommunication equipm

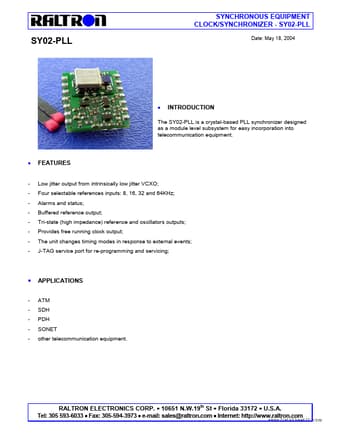

Datasheet Preview: SY02-PLL 📥 Download PDF (261.63kb)
Page 2 of SY02-PLL Page 3 of SY02-PLL

SY02-PLL Application

  • Applications ATM SDH PDH SONET other telecommunication equipment. RALTRON ELECTRONICS CORP. 10651 N.W.19 St Florida 33172 U.S.A. Tel: 305 593-6033
