RS13N50F - N-Channel MOSFET

📥 Download Datasheet

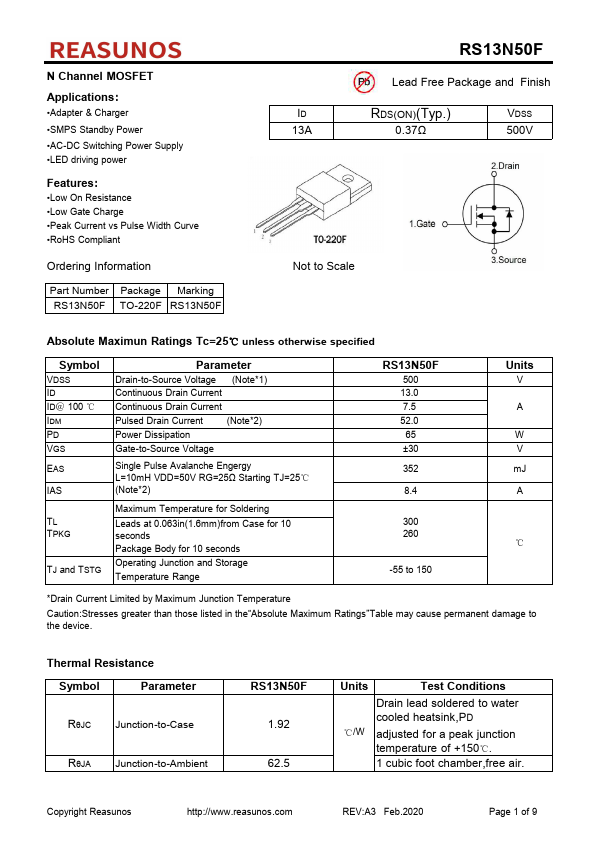

RS13N50F Datasheet Preview — Preview of RS13N50F PDF

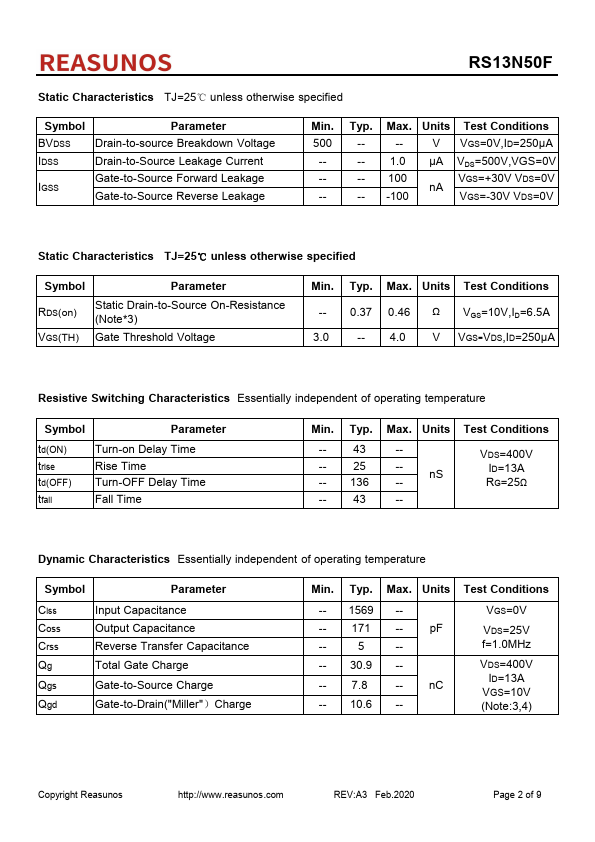

datasheet Preview Page 2

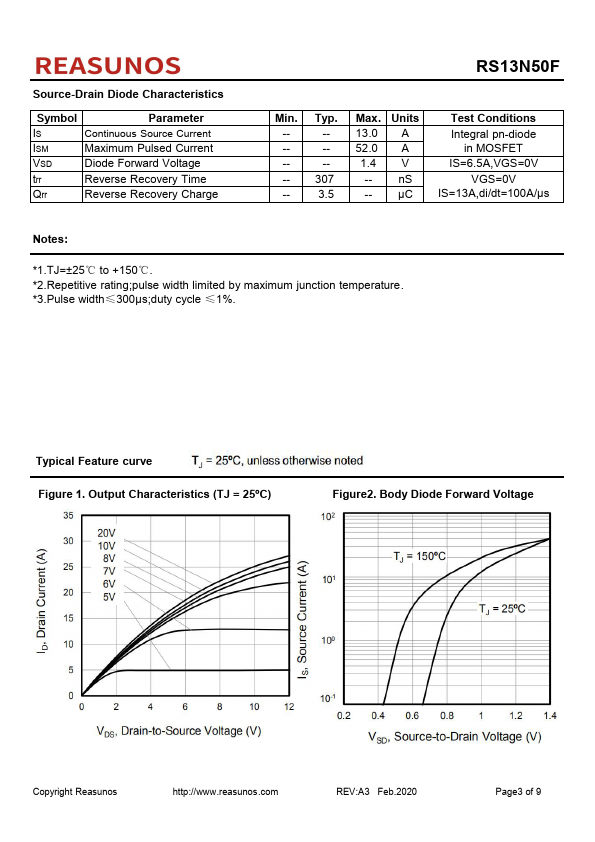

datasheet Preview Page 3

Datasheet Details

Part number	RS13N50F
Manufacturer	Reasunos
File Size	753.85 KB
Description	N-Channel MOSFET
Datasheet	RS13N50F-Reasunos.pdf

RS13N50F Product details

Features

Low On Resistance.
Low Gate Charge.
Peak Current vs Pulse Width Curve.
RoHS Compliant Ordering Information Part Number Package Marking RS13N50F TO-220F RS13N50F RS13N50F Lead Free Package and Finish ID RDS(ON)(Typ. ) VDSS 13A 0.37Ω 500V Not to Scale Absolute Maximun Ratings Tc=25℃ unless otherwise specified Symbol VDSS ID ID＠ 100 ℃ IDM PD VGS EAS IAS TL TPKG TJ and TSTG Parameter Drain-to-Source Voltage (Note.
1) Continuous Drain Current Continu.
