RS60N50D N-Channel MOSFET

Description

N Channel MOSFET Applications: *PWM applications *Load switch *Power management .

📥 Download Datasheet

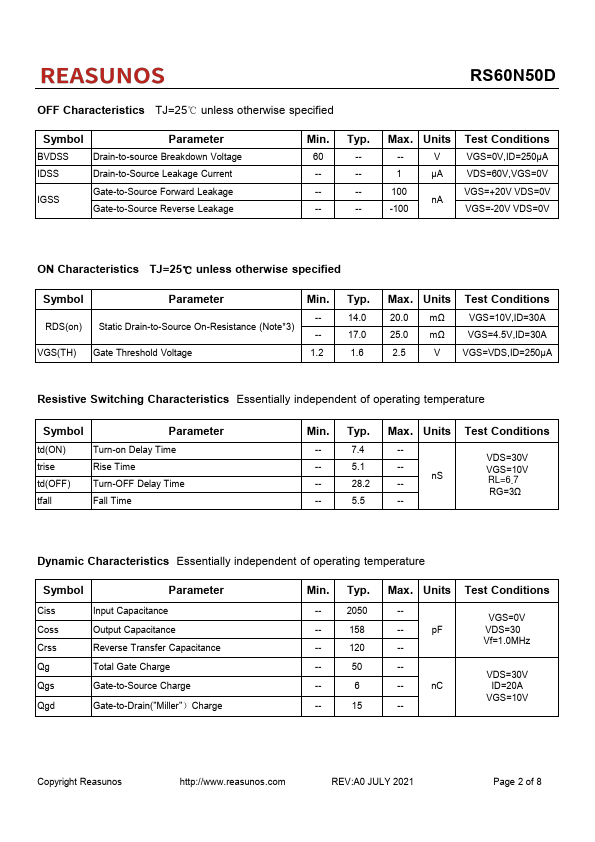

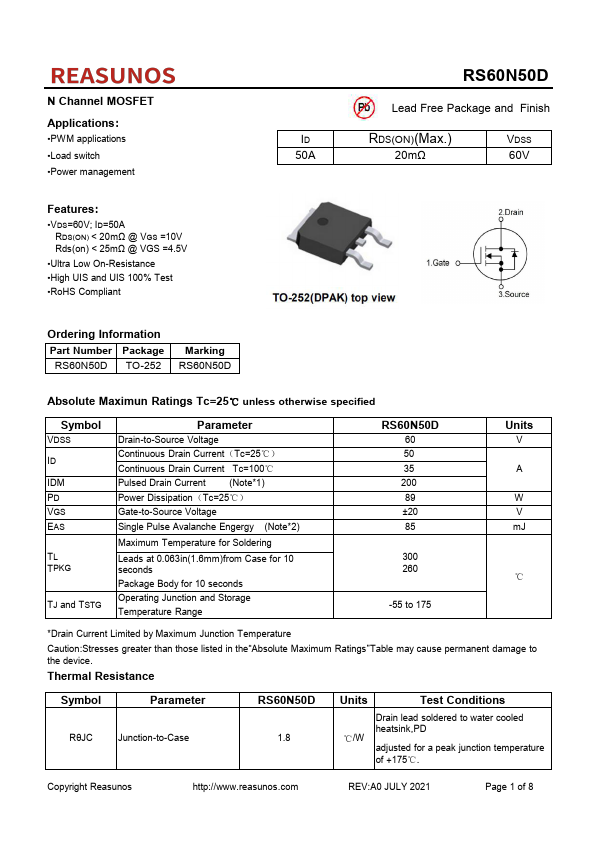

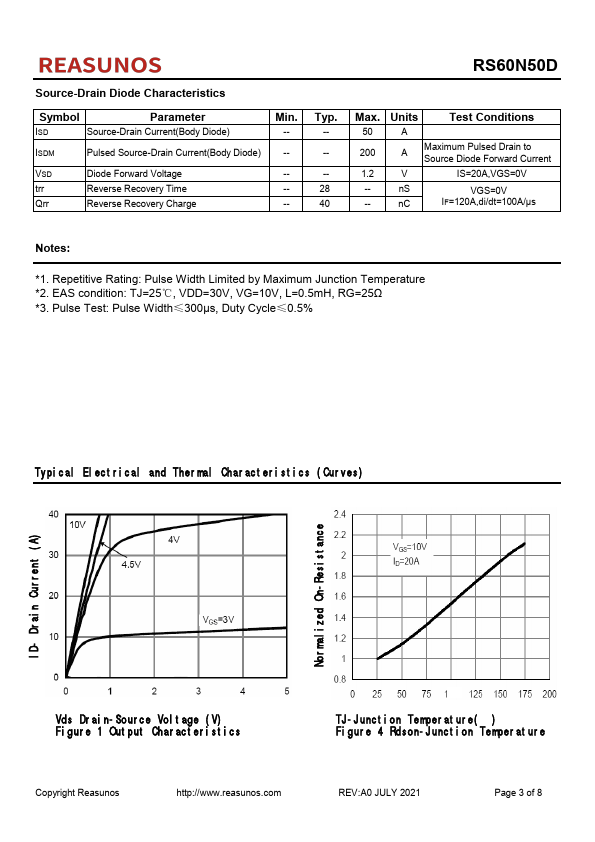

RS60N50D Datasheet Preview — Preview of RS60N50D PDF

Datasheet Specifications

Part number: RS60N50D
Manufacturer: Reasunos
File Size: 558.07 KB
Datasheet: RS60N50D-Reasunos.pdf
Description: N-Channel MOSFET

Features

* VDS=60V; ID=50A RDS(ON) < 20mΩ @ VGS =10V Rds(on) < 25mΩ @ VGS =4.5V
* Ultra Low On-Resistance
* High UIS and UIS 100% Test
* RoHS Compliant RS60N50D Lead Free Package and Finish ID RDS(ON)(Max. ) VDSS 50A 20mΩ 60V Ordering Information Part Number Package RS60N

Applications

* PWM applications
* Load switch
