DTC143XCA - DIGITAL TRANSISTOR

Rectron Semiconductor

📥 Download Datasheet

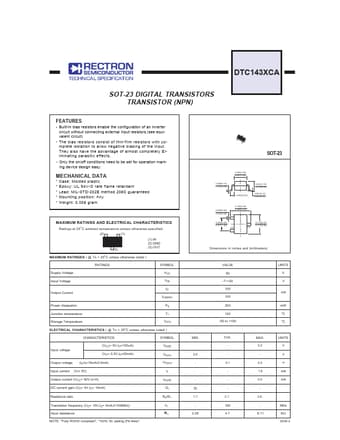

DTC143XCA Datasheet Preview — Preview of DTC143XCA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTC143XCA
Manufacturer	RectrON Semiconductor ↗
File Size	354.53 KB
Description	DIGITAL TRANSISTOR
Datasheet	DTC143XCA-RectronSemiconductor.pdf

DTC143XCA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely Eliminating parasitic effects.
Only the on/off conditions need to be set for operation marking device design easy.
