MP1505, MP158 - SILICON BRIDGE RECTIFIER

MP1505 Description

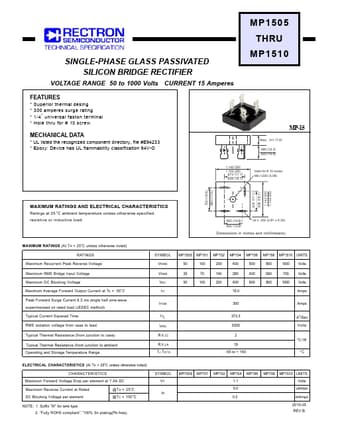

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes MP1505 THRU MP1510 .
AC + Part No. code: (Y:Last digit of year) Week. code: (WW:01~52) Voltage-code 05.

MP1505 Features

* Superior thermal desing
* 300 amperes surge rating //
* 1/4 universal faston terminal
* Hole thru for # 10 screw MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O MP-15 Max. .311 (7.9) .480
