1N4150 - HIGH SPEED SWITCHING DIODE

Datasheet Summary

Description

only.

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

Rectron Inc does not assume any liability arising out of the application or use of any product or circuit.

Features

  • High reliability.
  • DO-35 Package (JEDEC).
  • High forward current capability 1N4150 DO-35.

📥 Download Datasheet

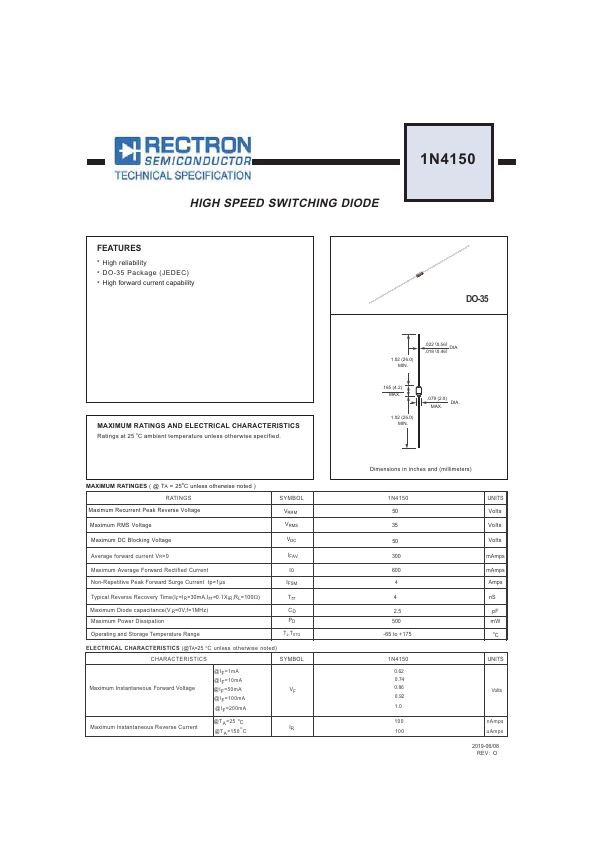

Datasheet preview – 1N4150

Datasheet Details

Part number 1N4150
Manufacturer Rectron
File Size 211.83 KB
Description HIGH SPEED SWITCHING DIODE
Datasheet download datasheet 1N4150 Datasheet

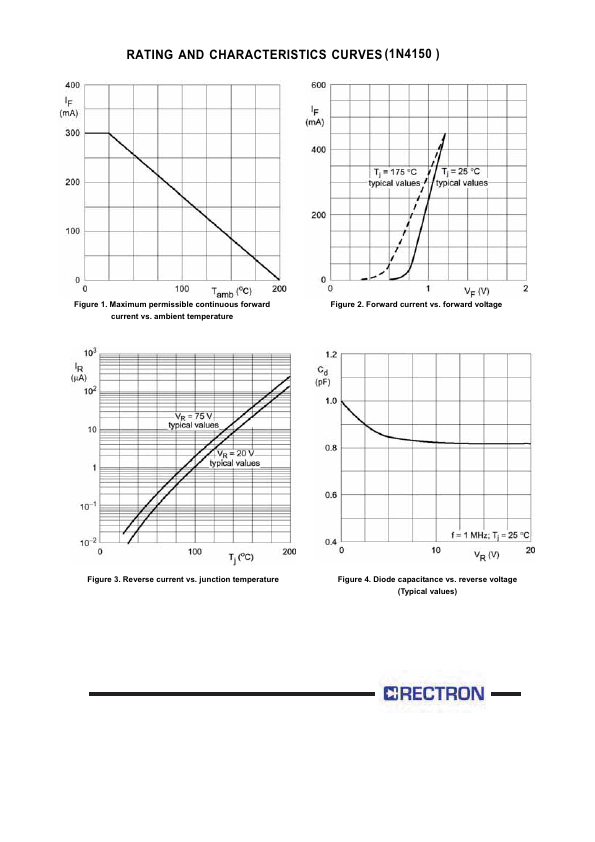

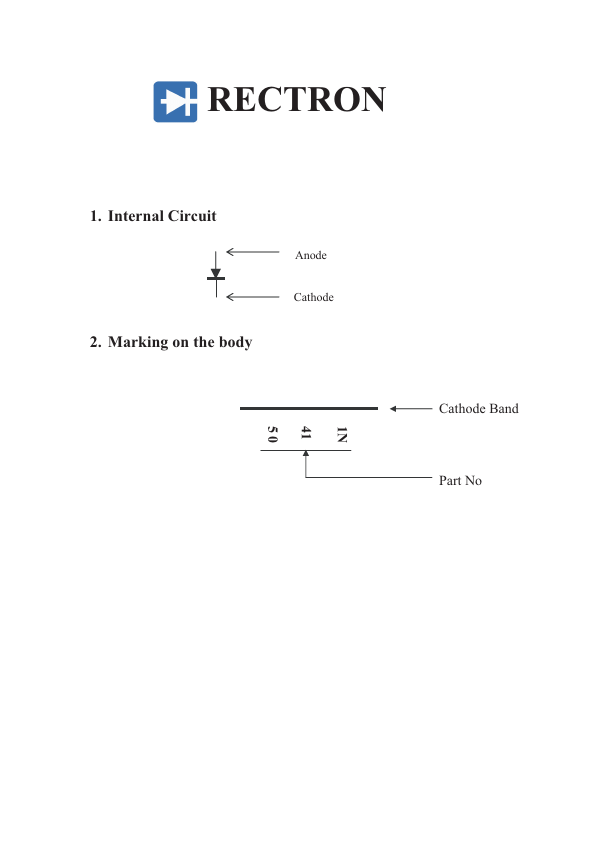

Additional preview pages of the 1N4150 datasheet.

📁 Similar Datasheet

  • 1N4150 - HIGH SPEED SWITCHING DIODES (DC COMPONENTS)
  • 1N4150 - Small Signal Fast Switching Diodes (Vishay)
  • 1N4150 - FAST SWITCHING DIODE (SMC Diode)
  • 1N4150 - FAST SWITCHING SURFACE MOUNT DIODES (PANJIT)
  • 1N4150 - SMALL SIGNAL SWITCHING DIODES (Sunmate)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1N4150-1 - SWITCHING DIODES (Compensated Deuices Incorporated)
  • 1N4150-1 - Silicon Switching Diode (MA-COM)
  • 1N4150-1 - SWITCHING DIODE (Microsemi)
  • 1N4150-1 - Silicon Switching Diodes (Aeroflex)
Other Datasheets by Rectron
  • 1N4148 - FAST SWITCHING DIODE
  • 1N4148WS - FAST SWITCHING DIODE
  • 1N4148WT - 200mW SOD-523 SURFACE MOUNT DIODE
  • 1N4001G - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER
  • 1N4001W - SURFACE GENERAL PURPOSE RECTIFIERS
  • 1N4002G - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER
  • 1N4002W - SURFACE GENERAL PURPOSE RECTIFIERS
  • 1N4003G - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER

Full PDF Text Transcription

Click to expand full text
HIGH SPEED SWITCHING DIODE FEATURES * High reliability * DO-35 Package (JEDEC) * High forward current capability 1N4150 DO-35 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. MAXIMUM RATINGES ( @ TA = 25oC unless otherwise noted ) RATINGS Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage SYMBOL VRRM VRMS Maximum DC Blocking Voltage VDC Average forward current VR=0 IFAV Maximum Average Forward Rectified Current IO Non-Repetitive Peak Forward Surge Current tp=1μs IFSM Typical Reverse Recovery Time(IF=IR=30mA,Irr =0.
