5.0SMCJ11A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR RECTIFIERS

Rectron

📥 Download Datasheet

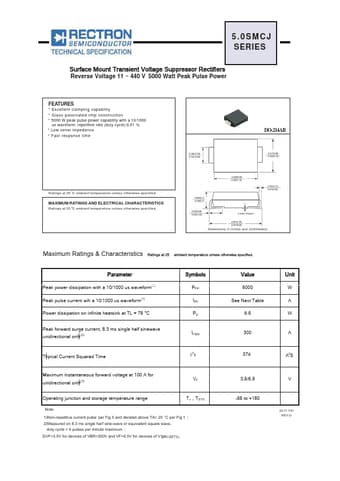

5.0SMCJ11A Datasheet Preview — Preview of 5.0SMCJ11A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	5.0SMCJ11A
Manufacturer	Rectron
File Size	226.23 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR RECTIFIERS
Datasheet	5.0SMCJ11A-Rectron.pdf

5.0SMCJ11A Product details

Features

Excellent clamping capability.
Glass passivated chip construction.
5000 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01 %.
Low zener impedance.
Fast response time DO-214AB Ratings at 25 oC ambient temperature unless otherwise specified.
