DB152, DB151 - SILICON BRIDGE RECTIFIER

DB152 Description

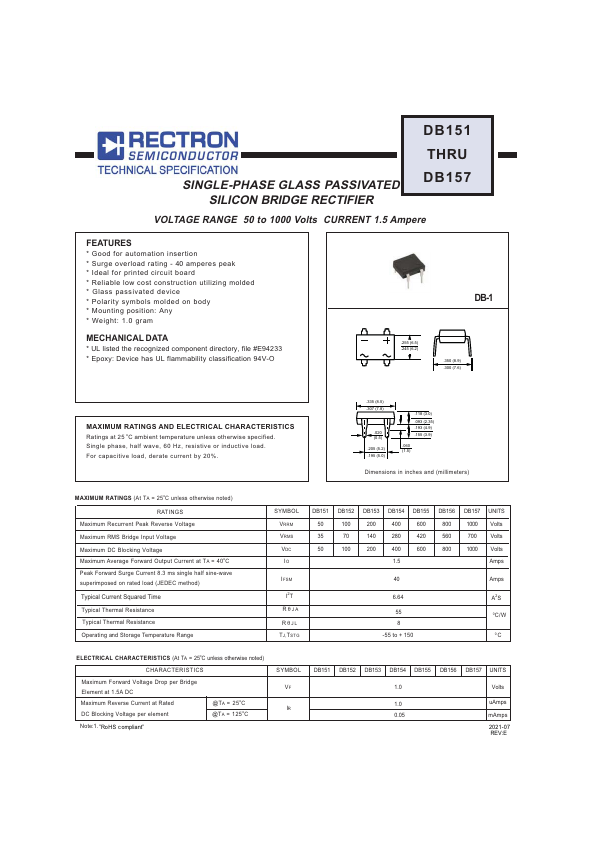

DB151 THRU SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER DB157 VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Ampere .

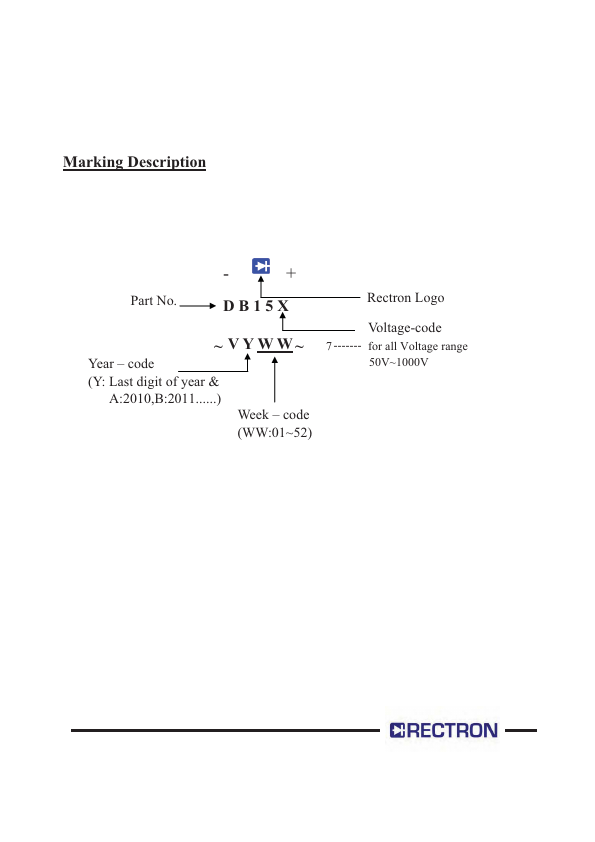

- + Part No. code (Y: Last digit of year & A:2010,B:2011) Week. code (WW:01~52) Voltage-code.

DB152 Features

* Good for automation insertion
* Surge overload rating - 40 amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Polarity symbols molded on body
* Mounting position: Any
* Weight: 1.0 gram MECHAN

DB152 Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB152, DB151. Please refer to the document for exact specifications by model.

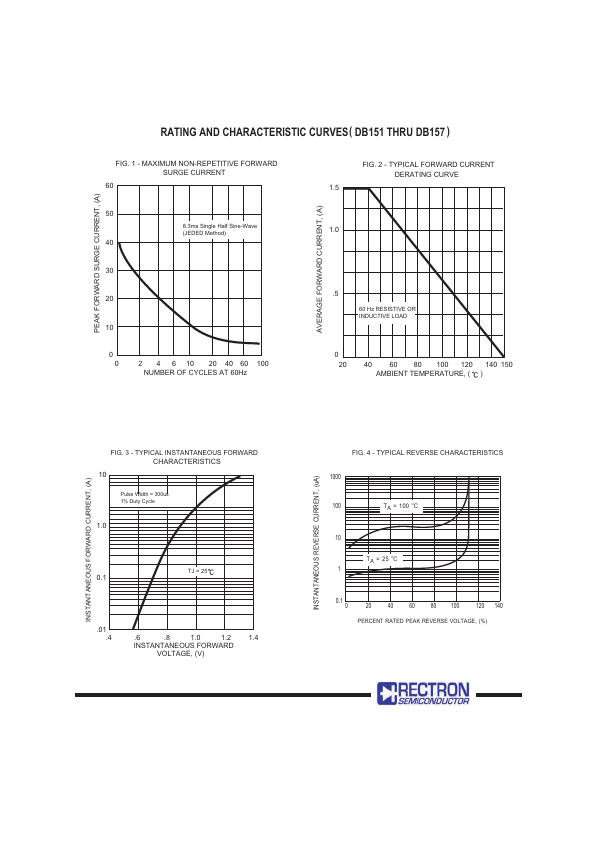

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB152, DB151
Manufacturer
Rectron
File Size
77.90 KB
Datasheet
DB151-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB152, DB151.
Please refer to the document for exact specifications by model.
