DB153S, DB1512S - SILICON BRIDGE RECTIFIER

DB153S Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1200 Volts CURRENT 1.5 Ampere .
only.

DB153S Features

* Surge overload rating - 60 amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Polarity symbols molded on body
* Mounting position: Any MECHANICAL DATA
* Epoxy : Device has UL flammability classifi

DB153S Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB153S, DB1512S. Please refer to the document for exact specifications by model.

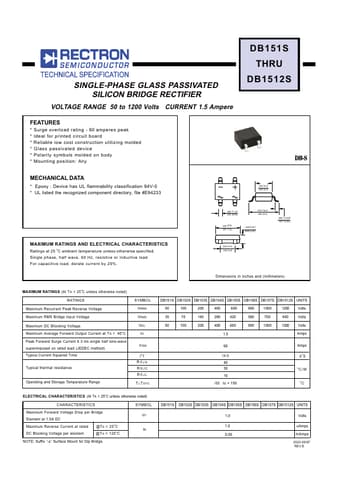

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB153S, DB1512S
Manufacturer
Rectron
File Size
321.96 KB
Datasheet
DB1512S-RectronSemiconductor.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB153S, DB1512S.
Please refer to the document for exact specifications by model.
