FM330, FM320 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

FM330 Description

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 200 Volts CURRENT 3.0 Amperes FM320 THRU FM3200 .
Rectron Logo Schottky Cathode Band 3 SX V Y WW Year - code (Y:Last digit of year & A:2010,B:2011) Week. code ⧊WW:01~52⧋ Part No.

FM330 Applications

* Low leakage current
* Metallurgically bonded construction
* P/N suffix V means AEC-Q101 qualified
* P/N suffix V means Halogen-free DO-214AB MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* Mounting position: Any
* Weight: 0.24 gram MAXIMUM R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FM330, FM320. Please refer to the document for exact specifications by model.

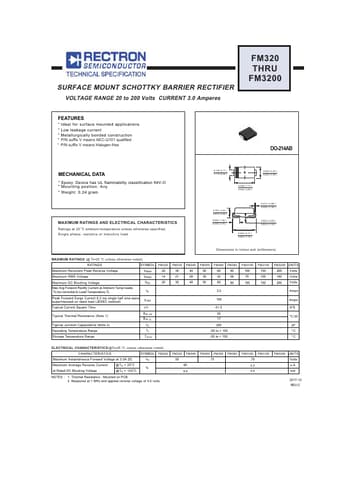

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FM330, FM320
Manufacturer
Rectron
File Size
87.82 KB
Datasheet
FM320-Rectron.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FM330, FM320.
Please refer to the document for exact specifications by model.
