MSB307S, MSB301S SILICON BRIDGE RECTIFIER

MSB307S Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere MSB301S THRU MSB307S .
Part No. code: (Y:Last digit of year& A:2010, B:2011……) Week.

MSB307S Features

* Good for automation insertion
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded
* Glass passivated device
* Mounting position: Any MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flamm

MSB307S Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSB307S, MSB301S. Please refer to the document for exact specifications by model.

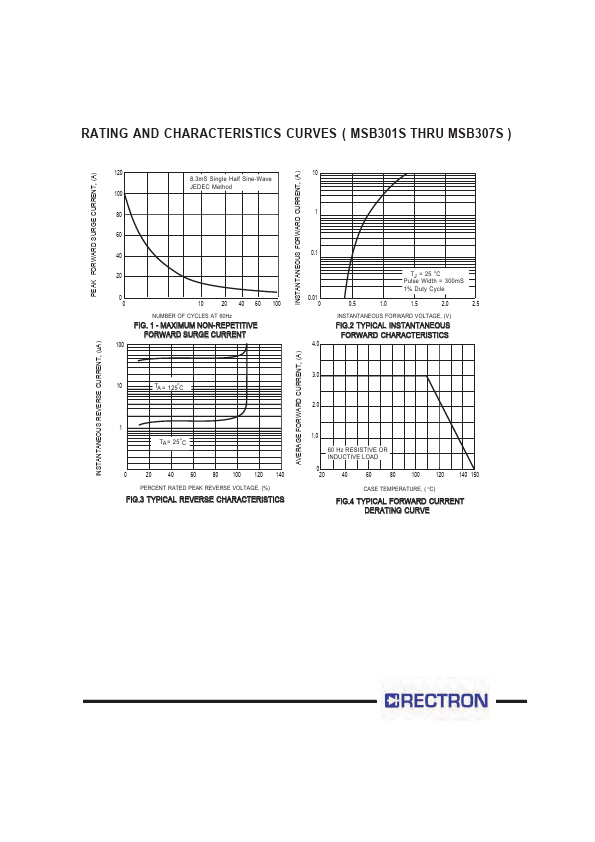

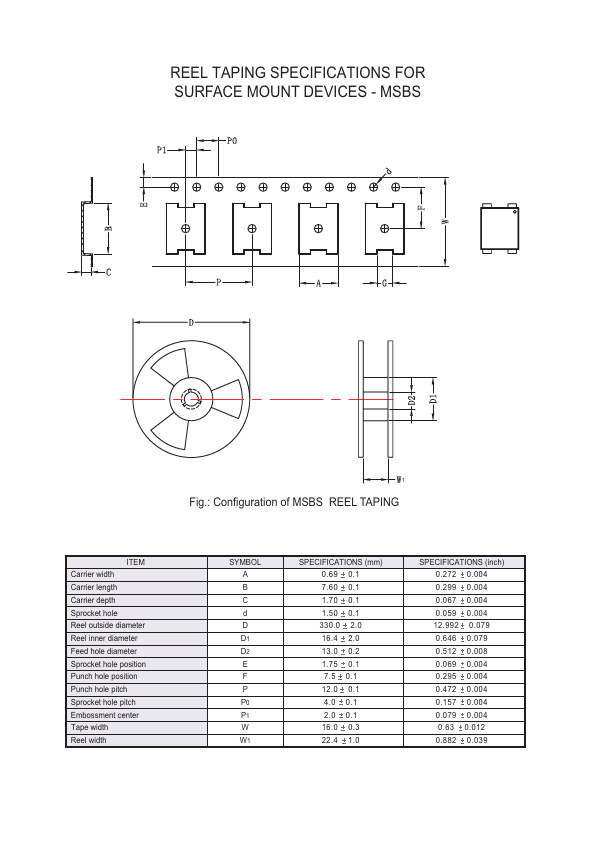

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSB307S, MSB301S
Manufacturer
Rectron
File Size
205.59 KB
Datasheet
MSB301S-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MSB307S, MSB301S.
Please refer to the document for exact specifications by model.
