ECN3061, High Voltage Monolithic IC

HIGH-VOLTAGE MONOLITHIC IC ECN3061 ECN3061 is a one-chip three-phase bridge inverter IC which has 6 IGBTs in the circuit.Especially, it is very suit.

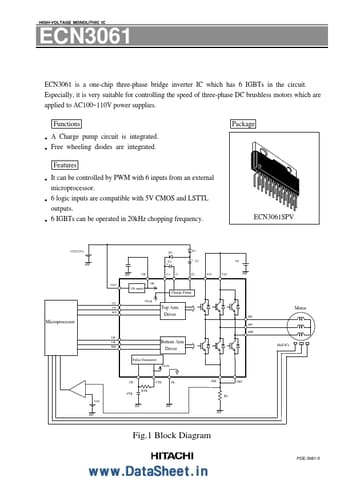

datasheet Preview Page 1 from Datasheet4u.com

ECN3061_RenesasTechnology.pdf

ECN3061 Datasheet Preview — Preview of ECN3061 PDF

Datasheet Details

Part number:

ECN3061

Manufacturer:

Renesas ↗ Technology

File Size:

95.81 KB

Description:

High Voltage Monolithic IC

Features

* l l l It can be controlled by PWM with 6 inputs from an external microprocessor. 6 logic inputs are compatible with 5V CMOS and LSTTL outputs. 6 IGBTs can be operated in 20kHz chopping frequency. ECN3061SPV VCC(15V) D2 C2 + CB VB VB supply C+ C- D1 + C1 CL VS1 VS2 VS VCC Charge Pump UT VT
