ECN3067 - High Voltage Monolithic IC

Product Overview

Renesas Technology

📥 Download Datasheet

ECN3067 High Voltage Monolithic IC by Renesas Technology - Datasheet Preview — Datasheet preview – ECN3067

Datasheet Details

Part number	ECN3067
Manufacturer	Renesas Technology
File Size	112.06 KB
Description	High Voltage Monolithic IC
Datasheet	ECN3067 Datasheet
Additional preview pages of the ECN3067 datasheet.

Product details

Features

PWM control of upper and bottom arm IGBTs are possible with an outer Microprocessor.
6 Logic inputs are compatible with 5V CMOS or LSTTL outputs.
Upper and Bottom arm IGBTs can operate in 20kHz chopping frequency.

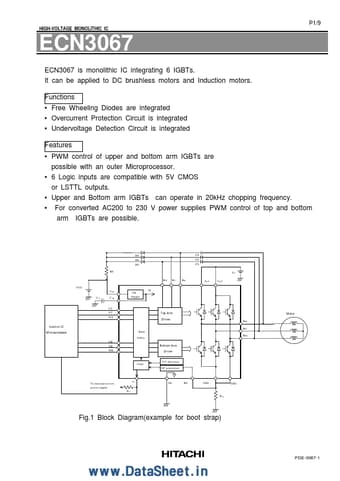

For converted AC200 to 230 V power supplies PWM control of top and bottom arm IGBTs are possible. Db Db Db Rb Bw VCC Vcc C 0 Cb Cb Cb Vs Bv Bu Vs1 Vs2 CB UT VT WT VB Supply VB Top Arm Driver Motor Mu Mv Control IC Microprocessor Input b.
