M30620MCA-XXXFP, M30620M8A-XXXFP, 16-BIT SINGLE-CHIP MICROCOMPUTER

.
Mitsubishi microcomputers M16C / 62A Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62A group of single-chip microcomputers are bu.

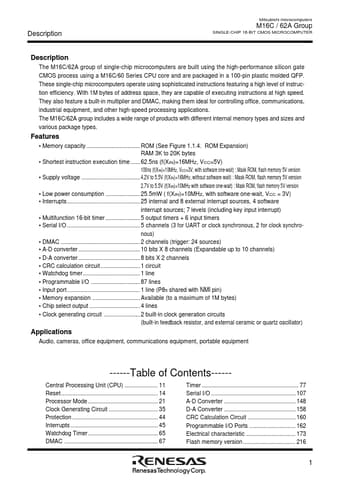

datasheet Preview Page 1 from Datasheet4u.com

M30620M8A-XXXFP_RenesasTechnology.pdf

M30620MCA-XXXFP Datasheet Preview — This datasheet PDF includes multiple part numbers: M30620MCA-XXXFP, M30620M8A-XXXFP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M30620MCA-XXXFP, M30620M8A-XXXFP

Manufacturer:

Renesas ↗ Technology

File Size:

3.75 MB

Description:

16-BIT SINGLE-CHIP MICROCOMPUTER

Note:

This datasheet PDF includes multiple part numbers: M30620MCA-XXXFP, M30620M8A-XXXFP.
Please refer to the document for exact specifications by model.

Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes
* Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version
* Supply voltage 4.2V to 5.5V (f(XIN)=16
