M30620M8A-XXXFP Datasheet - Renesas Technology

16-BIT SINGLE-CHIP MICROCOMPUTER

M30620M8A-XXXFP Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes

* Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version

* Supply voltage 4.2V to 5.5V (f(XIN)=16

M30620M8A-XXXFP General Description

Mitsubishi microcomputers M16C / 62A Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62A group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These singl.

M30620M8A-XXXFP Datasheet (3.75 MB)

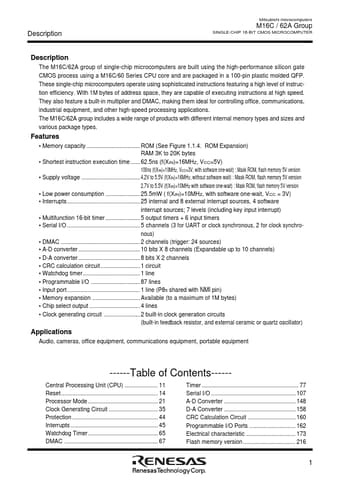

Preview of M30620M8A-XXXFP PDF

Datasheet Details

Part number:

M30620M8A-XXXFP

Manufacturer:

Renesas ↗ Technology

File Size:

3.75 MB

Description:

16-bit single-chip microcomputer.
