M30620M8A-XXXGP, M30 Datasheet - Mitsubishi

M30620M8A-XXXGP SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62A group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophist.

M30620M8A-XXXGP Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes

* Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version

* Supply voltage 4.2V to 5.5V (f(XIN)=16

M30-620M.pdf

This datasheet PDF includes multiple part numbers: M30620M8A-XXXGP, M30. Please refer to the document for exact specifications by model.

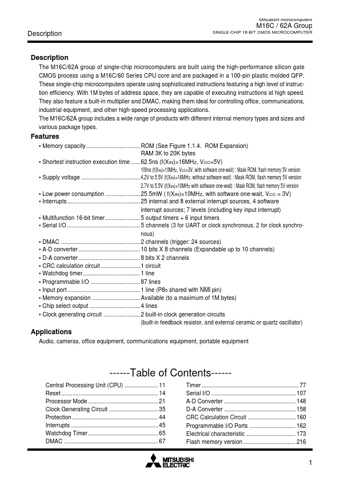

M30620M8A-XXXGP Datasheet Preview Page 2 M30620M8A-XXXGP Datasheet Preview Page 3

Datasheet Details

Part number:

M30620M8A-XXXGP, M30

Manufacturer:

Mitsubishi

File Size:

3.51 MB

Description:

Single-chip 16-bit cmos microcomputer.

Note:

This datasheet PDF includes multiple part numbers: M30620M8A-XXXGP, M30.
Please refer to the document for exact specifications by model.
