M30620M8-359FP Datasheet - Mitsubishi

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

M30620M8-359FP Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 10K to 20K bytes

* Shortest instruction execution time 100ns (f(XIN)=10MHZ, VCC=2.7V to 3.6V) 142.9ns (f(XIN)=7MHZ, VCC=2.2V to 3.6V with software one-wait)

* Supply voltage 2.7V to 3.6V (f(XIN)=10MHZ, without sof

M30620M8-359FP General Description

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62M group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophist.

M30620M8-359FP Datasheet (414.18 KB)

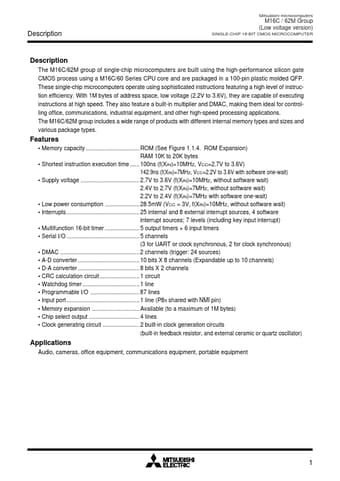

Preview of M30620M8-359FP PDF

Datasheet Details

Part number:

M30620M8-359FP

Manufacturer:

Mitsubishi

File Size:

414.18 KB

Description:

Single-chip 16-bit cmos microcomputer.
