M38D5 SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

The 38D5 Group is the 8-bit microcomputer based on the 740 Family core technology. The 38D5 Group is pin-compatible with the 38C5 Group. The 38D5 Group has an LCD drive control circuit, an A/D converter, a serial interface, and a ROM correction function as additional functions. The QzROM version and.

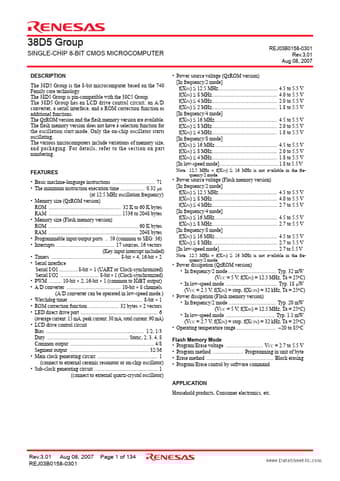

38D5 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER www.DataSheet4U.com REJ03B0158-0301 Rev.3.01 Aug 08, 2007 Power source voltage (QzROM version) [In frequency/2 mode] f(XIN) ≤ 12.5 MHz 4.5 to 5.5 V f(XIN) ≤ 8 MHz 4.0 to 5.5 V f(XIN) ≤ 4 MHz 2.0 to 5.5 V f(XIN) ≤ 2 MHz 1.8 to 5.5 V [In frequency/4 mode] f(XIN) ≤ 16 MHz 4.5 to 5.5 V f(XIN) ≤ 8 MHz 2.0 to 5.5 V f(XIN) ≤ 4 MHz 1.8 to 5.5 V [In frequency/8 mode] f(XIN) ≤ 16 MHz 4.5 to 5.5 V f(XIN) ≤ 8 MHz 2.0 to 5.5 V f(XIN) ≤ 4 MHz 1.8 to 5.

M38D5 Features

* Basic machine-language instructions 71

* The minimum instruction execution time 0.32 µs (at 12.5 MHz oscillation frequency)

* Memory size (QzROM version) ROM 32 K to 60 K bytes RAM 1536 to 2048 bytes

* Memory size (Flash memory version) ROM 60 K bytes RAM 2048
