R2A20101NP Datasheet, Converter, Renesas Technology

R2A20101NP Features

  • Converter
  • Built-in low Ron power MOS FETs Pch Ron = 0.30 Ω (Typ), Nch Ron = 0.14 Ω (Typ)
  • High switching frequency: 2 MHz (Max)
  • Output current: 650 mA (Max)

PDF File Details

Part number:

R2A20101NP

Manufacturer:

Renesas ↗ Technology

File Size:

193.19kb

Download:

📄 Datasheet

Description:

Monolithic synchronous step-down dc/dc converter. Pin No. R2A20101BM (CSP-15) A1, A3, A5 B2, B4 C1, C3, C5 D4 D2 E5 E1 F4 E3 F2 Note: R2A20101NP (QFN-24) 15, 16, 17 11, 20 10, 21 22 9

Datasheet Preview: R2A20101NP 📥 Download PDF (193.19kb)

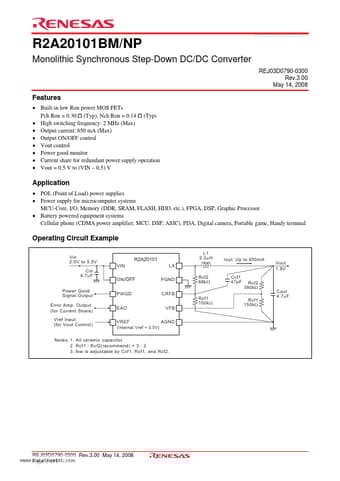

Page 2 of R2A20101NP Page 3 of R2A20101NP
