R2A20111SP - Power Factor Correction Controller

This page provides the datasheet information for the R2A20111SP, a member of the R2A20111DD Power Factor Correction Controller family.

Datasheet Summary

Description

The R2A20111 is a power-factor correction (PFC) controller IC.

This IC adopts continuous conduction mode as PFC operation.

Features

  • Maximum ratings ⎯ Power-supply voltage Vcc: 24 V ⎯ Operating junction temperature Tjopr:.
  • 40 to 125°C.
  • Electrical characteristics ⎯ VREF output voltage VREF: 5.0 V ± 3% ⎯ UVLO operation start voltage VH: 10.5 ± 0.9 V ⎯ UVLO operation stop voltage VL: 9.0 ± 0.7 V ⎯ PFC output maximum ON duty Dmax-out: 95% (typ. ).
  • Functions ⎯ Constant power limit function ⎯ Continuous conduction mode ⎯ Hold function of PFC operation on momentary outage (PFC hold function) ⎯ Ove.

📥 Download Datasheet

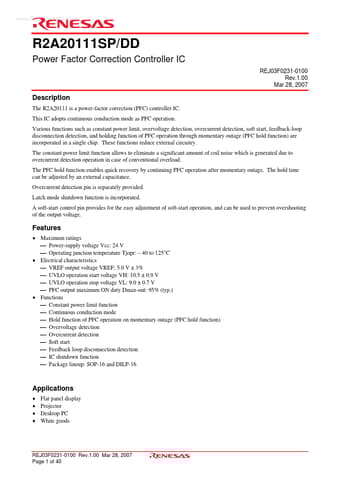

Datasheet preview – R2A20111SP

Datasheet Details

Part number R2A20111SP
Manufacturer Renesas Technology
File Size 334.37 KB
Description Power Factor Correction Controller
Datasheet download datasheet R2A20111SP Datasheet
