R2A20112DD - Critical Conduction Mode Interleaved PFC Controller

Datasheet Summary

Description

The R2A20112 controls a boost converter to provide an active power factor correction.

The R2A20112 adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching.

Features

  • Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Operating junction temperature Tjopr:.
  • 40 to +150°C.
  • Electrical characteristics ⎯ VREF output voltage VREF: 5.0 V ± 3% ⎯ UVLO operation start voltage VH: 10.5 V ± 0.7 V ⎯ UVLO operation shutdown voltage VL: 9.3 V ± 0.5 V ⎯ UVLO hysteresis voltage Hysuvl: 1.2 V ± 0.5 V.
  • Functions ⎯ Boost converter control with critical conduction mode ⎯ Interleaving control ⎯ Two mode overvoltage protection Mode1: Dynamic OVP corresp.

📥 Download Datasheet

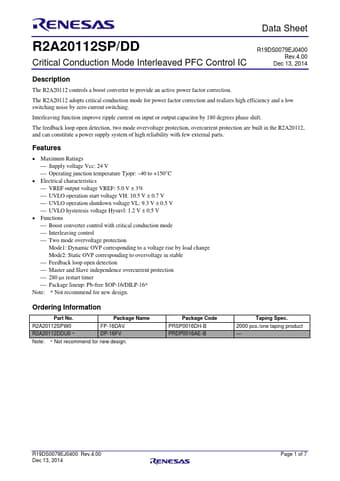

Datasheet preview – R2A20112DD

Datasheet Details

Part number R2A20112DD
Manufacturer Renesas Technology
File Size 323.91 KB
Description Critical Conduction Mode Interleaved PFC Controller
Datasheet download datasheet R2A20112DD Datasheet
Additional preview pages of the R2A20112DD datasheet.

📁 Similar Datasheet

  • R2A20112 - Critical Conduction Mode Interleaved PFC Controller (Renesas)
  • R2A20112A - Critical Conduction Mode Interleaved PFC Controller (Renesas)
  • R2A20112ASP - Critical Conduction Mode Interleaved PFC Controller (Renesas)
  • R2A20113ASP - Critical Conduction Mode PFC Controller (Renesas)
  • R2A20114BFP - Continuous Conduction Mode Interleaving PFC Controller (Renesas)
  • R2A20117 - critical mode interleaved PFC (Renesas)
  • R2A20150NP - 8-bit I/O Expander (Renesas)
  • R2A20150SA - 8-bit I/O Expander (Renesas)
  • R2A20152NS - 8-bit 2ch D/A Converter (Renesas)
  • R2A20152SP - 8-bit 2ch D/A Converter (Renesas)
Other Datasheets by Renesas Technology
  • R2A20112SP - Critical Conduction Mode Interleaved PFC Controller
  • R2A20111DD - Power Factor Correction Controller
  • R2A20111SP - Power Factor Correction Controller
  • R2A20113DD - Critical Conduction Mode PFC Controller
  • R2A20113SP - Critical Conduction Mode PFC Controller
  • R2A20118ASP - Critical Conduction Mode Interleaved PFC Controller
  • R2A20101BM - Monolithic Synchronous Step-Down DC/DC Converter
  • R2A20101NP - Monolithic Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text
Data Sheet R2A20112SP/DD R19DS0079EJ0400 Critical Conduction Mode Interleaved PFC Control IC Rev.4.00 Dec 13, 2014 Description The R2A20112 controls a boost converter to provide an active power factor correction. The R2A20112 adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Interleaving function improve ripple current on input or output capacitor by 180 degrees phase shift. The feedback loop open detection, two mode overvoltage protection, overcurrent protection are built in the R2A20112, and can constitute a power supply system of high reliability with few external parts.
