RKP201KL - Silicon Epitaxial Trench Pin Diode

Renesas Technology

📥 Download Datasheet

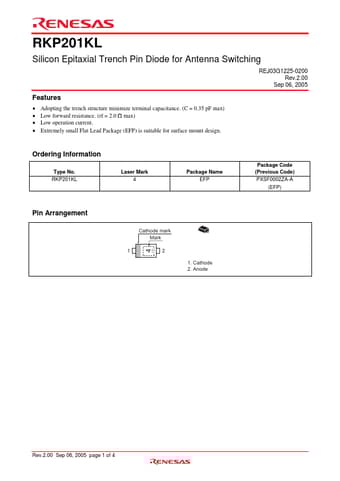

RKP201KL Datasheet Preview — Preview of RKP201KL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RKP201KL
Manufacturer	Renesas ↗ Technology
File Size	89.04 KB
Description	Silicon Epitaxial Trench Pin Diode
Datasheet	RKP201KL_RenesasTechnology.pdf

RKP201KL Product details

Features

Adopting the trench structure minimize terminal capacitance. (C = 0.35 pF max) Low forward resistance. (rf = 2.0 Ω max) Low operation current. Extremely small Flat Lead Package (EFP) is suitable for surface mount design. Ordering Information Type No. RKP201KL Laser Mark 4 Package Name EFP Package Code (Previous Code) PXSF0002ZA-A (EFP) Pin Arrangement Cathode mark Mark 1 4.
2 1. Cathode 2. Anode Rev.2.00 Sep 06, 2005 page 1 of 4 RKP201KL Ab.
