16666FP

HA16666FP

16666FP Features

* High-speed switching; tr = 80 ns (15 V amplitude) tf = 40 ns (15 V amplitude)

* Low power dissipation; 0.3 mA max in standby state 12 mA max in operation state (V IN = 15 V)

* Dual-slope highly accurate dead-band duty setup circuit; Setup accuracy Du = ±3% (max)

* W

16666FP General Description

The HA16666P/FP is a voltage mode PWM (pulse width modulation) control IC for switching regulator control. It can drive a power MOS FET efficiently on 600 kHz. Its stanby current is 0.3 mA (max), and it is used as the primary control power supply. Functions

*

*

*

* <.

16666FP Datasheet (158.80 KB)

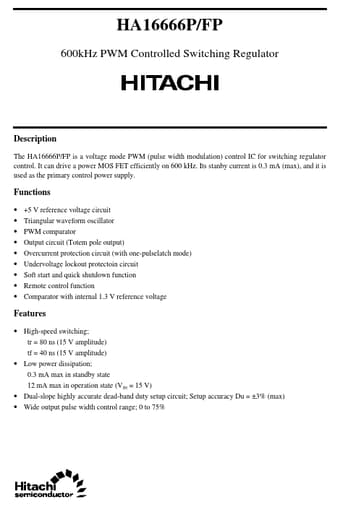

Preview of 16666FP PDF

Datasheet Details

Part number:

16666FP

Manufacturer:

Renesas ↗

File Size:

158.80 KB

Description:

Ha16666fp.
