2SC2546, 2SC2545, Silicon NPN Transistor

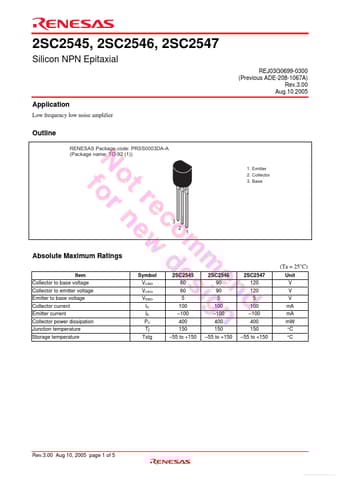

2SC2545, 2SC2546, 2SC2547 Silicon NPN Epitaxial REJ03G0699-0300 (Previous ADE-208-1067A) Rev.3.00 Aug.10.2005 Application Low frequency low noise amplifier Outline RENESAS Package code: PRSS0003DA-A (Package name: TO-92 (1)) 1.

Emitter 2.

Collector 3.

Base 3 2 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature Symbol VC

2SC2546 Features

* , Tsimshatsui, Kowloon, Hong Kong Tel: 2265-6688, Fax: 2730-6071 Renesas Technology Taiwan Co., Ltd. 10th Floor, No.99, Fushing North Road, Taipei, Taiwan Tel: (2) 2715-2888, Fax: (2) 2713-2999 Renesas Technology (Shanghai) Co., Ltd. Unit2607 Ruijing Building, No.205 Maoming
