2SC2541 - NPN Power Transistor

2SC2541 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 400V(Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device perf.

2SC2541 Applications

* Designed for switch-mode CTV supply systems applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 10 V IC Collector Current-Continuous 10 A ICM Collector

📥 Download Datasheet

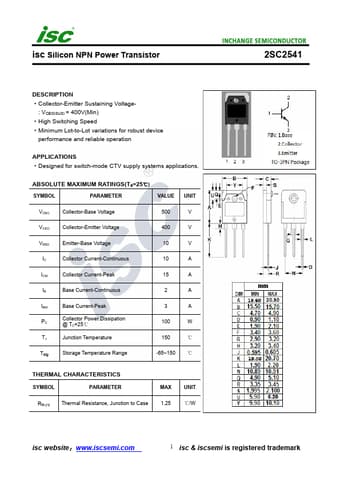

Preview of 2SC2541 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2541
Manufacturer
INCHANGE
File Size
242.16 KB
Datasheet
2SC2541-INCHANGE.pdf
Description
NPN Power Transistor
