2SC2502 - NPN Transistor

2SC2502 Description

isc Silicon NPN Power Transistor 2SC2502 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V(Min). Fast Switching Speed. Collector-Emitter Saturation Voltage- : VCE(sat)= 0.

2SC2502 Applications

* Designed for use in high-voltage, high-speed , power switching in inductive circuit , they are particularly suited for 115 and 220V switchmode applications such as switching regulator’s, inverters. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage 500 V

📥 Download Datasheet

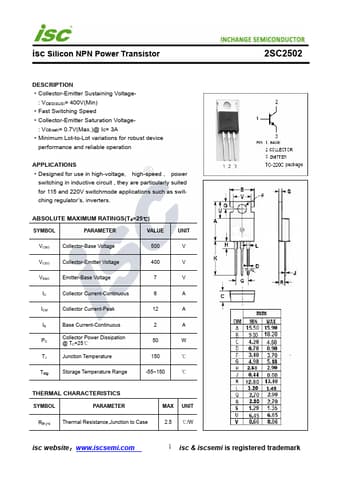

Preview of 2SC2502 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2502
Manufacturer
INCHANGE
File Size
218.74 KB
Datasheet
2SC2502-INCHANGE.pdf
Description
NPN Transistor
