9DBV0441 - 1.8V PCIe Gen1-4 ZDB/FOB

Renesas

📥 Download Datasheet

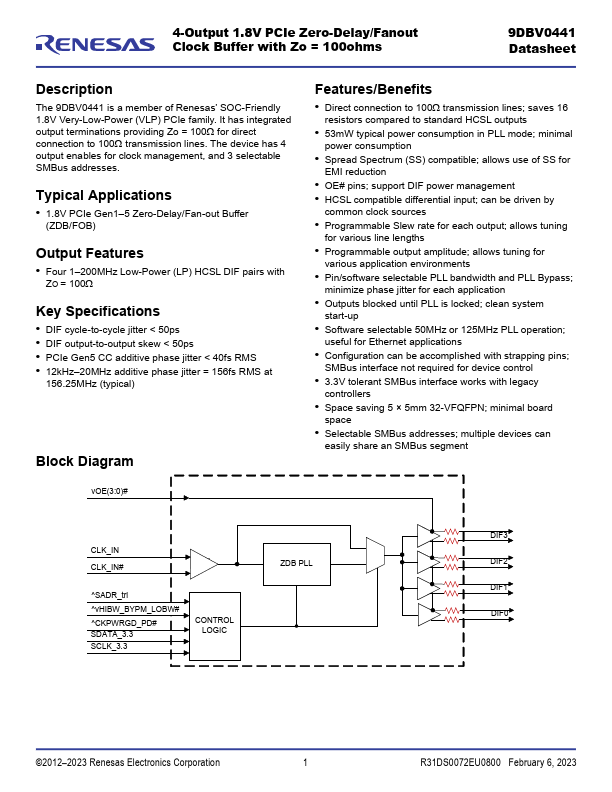

9DBV0441 Datasheet Preview — Preview of 9DBV0441 PDF

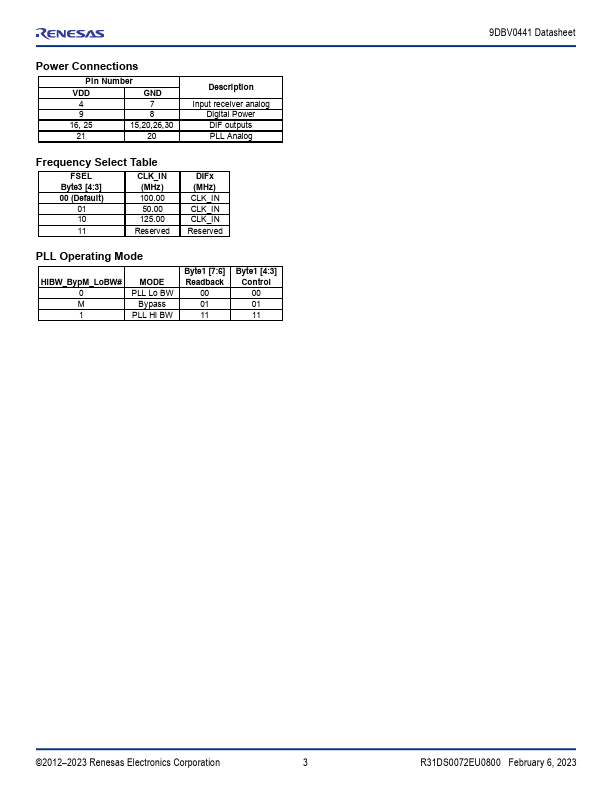

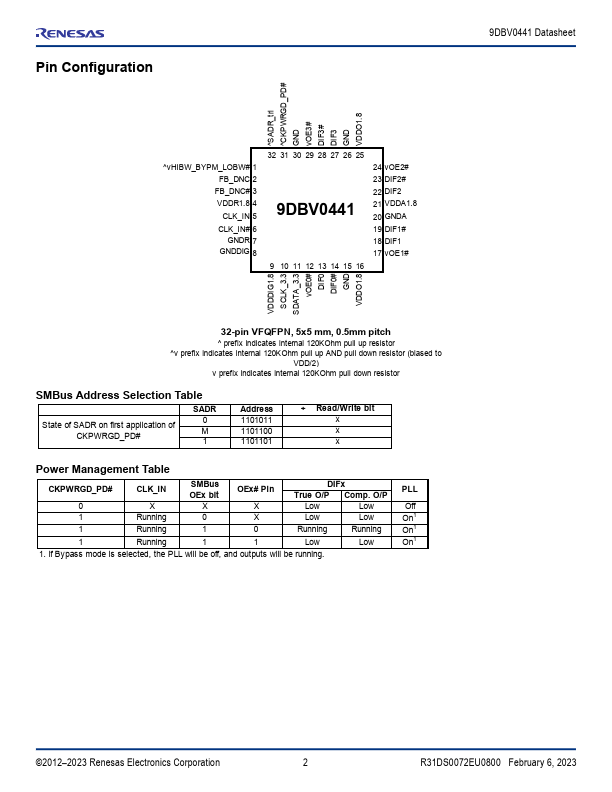

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	9DBV0441
Manufacturer	Renesas
File Size	689.24 KB
Description	1.8V PCIe Gen1-4 ZDB/FOB
Datasheet	9DBV0441-Renesas.pdf

9DBV0441 Product details

Description

The 9DBV0441 is a member of Renesas’ SOC-Friendly 1.8V Very-Low-Power (VLP) PCIe family. 1.8V PCIe Gen1 5 Zero-Delay/Fan-out Buffer (ZDB/FOB) Output

Features

Four 1.
200MHz Low-Power (LP) HCSL DIF pairs with ZO = 100 Key Specifications.
DIF cycle-to-cycle jitter < 50ps.
DIF output-to-output skew < 50ps.
PCIe Gen5 CC additive phase jitter < 40fs RMS.
12kHz.
20MHz additive phase jitter = 156fs RMS at 156.25MHz (typical) Block Diagram vOE(3:0)# Features/Benefits.
Direct connection to 100 transmission lines; saves 16 resistors compared to standard HCSL outputs.
53mW typical.
