C1345 Datasheet - Renesas

C1345 Silicon NPN Transistor

2SC1345 Silicon NPN Epitaxial REJ03G0687-0300 (Previous ADE-208-1052A) Rev.3.00 Sep.10.2005 Application Low frequency low noise amplifier Outline RENESAS Package code: PRSS0003DA-A (Package name: TO-92 (1)) 1. Emitter 2. Collector 3. Base 3 2 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings.

C1345-Renesas.pdf

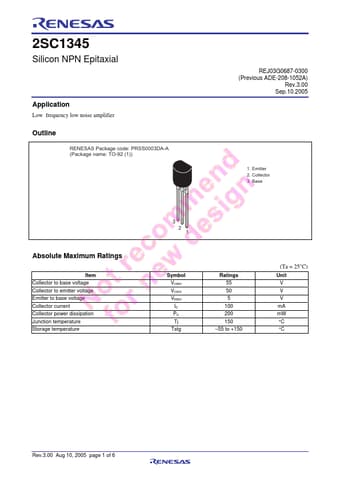

Preview of C1345 PDF
C1345 Datasheet Preview Page 2 C1345 Datasheet Preview Page 3

Datasheet Details

Part number:

C1345

Manufacturer:

Renesas ↗

File Size:

150.70 KB

Description:

Silicon npn transistor.
