DA9063

System PMIC

DA9063 Features

* 6 DC-DC buck converters with DVC

* RGB-LED driver with autonomous flashing

* 2.5 A BuckCore1 5 A in dual phase

* PWM vibration motor driver

* 2.5 A BuckCore2 mode

* 10-bit ADC with nine channels and

* 2.5 A BuckPro configurable alarm thresholds

DA9063 General Description

DA9063 is a high current system PMIC suitable for dual- and quad-core processors used in smartphones, tablets, ultra-books, and other handheld and automotive applications that require up to 5 A core processor supply. DA9063 contains six DC-DC buck converters designed for small external 1 µH inductor.

DA9063 Datasheet (3.01 MB)

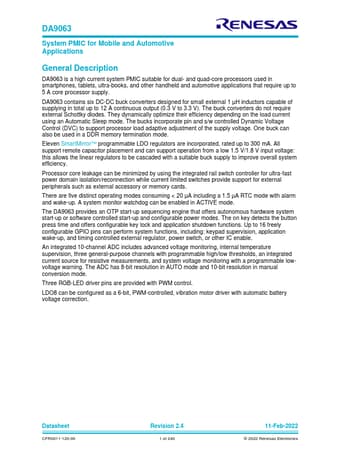

Preview of DA9063 PDF

Datasheet Details

Part number:

DA9063

Manufacturer:

Renesas ↗

File Size:

3.01 MB

Description:

System pmic.
