DA9313 - High Efficiency Dual Cell Switched Capacitor Divider

Renesas

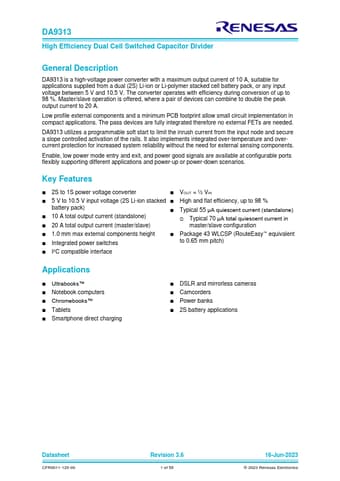

DA9313 Datasheet Preview — Preview of DA9313 PDF

Datasheet Details

Part number	DA9313
Manufacturer	Renesas ↗
File Size	810.69 KB
Description	High Efficiency Dual Cell Switched Capacitor Divider
Datasheet	DA9313-Renesas.pdf

DA9313 Product details

Description

DA9313 is a high-voltage power converter with a maximum output current of 10 A, suitable for applications supplied from a dual (2S) Li-ion or Li-polymer stacked cell battery pack, or any input voltage between 5 V and 10.5 V.

Features

2S to 1S power voltage converter.
VOUT = ½ VIN.
5 V to 10.5 V input voltage (2S Li-ion stacked.
High and flat efficiency, up to 98 % battery pack).
Typical 55 μA quiescent current (standalone).
10 A total output current (standalone).
Typical 70 μA total quiescent current in.
20 A total output current (master/slave) master/slave configuration.
1.0 mm max external components height.
Integrated power switches.
Package 43 WLCSP (.
