DA9061 - PMIC

Product Overview

Renesas

Datasheet Details

Part number	DA9061
Manufacturer	Renesas
File Size	1.30 MB
Description	PMIC
Datasheet	DA9061 Datasheet

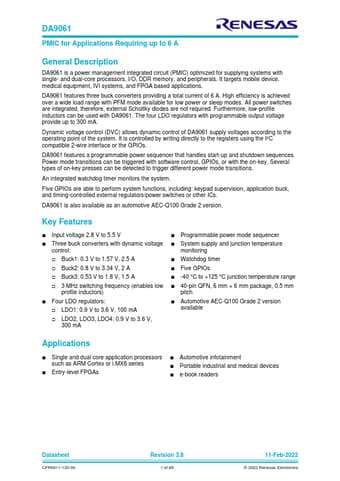

Additional preview pages of the DA9061 datasheet.

Product details

Description

DA9061 is a power management integrated circuit (PMIC) optimized for supplying systems with single- and dual-core processors, I/O, DDR memory, and peripherals.

Features

three buck converters providing a total current of 6 A. High efficiency is achieved over a wide load range with PFM mode available for low power or sleep modes. All power switches are integrated, therefore, external Schottky diodes are not required. Furthermore, low-profile inductors can be used with DA9061. The four LDO regulators with programmable output voltage provide up to 300 mA. Dynamic voltage control (DVC) allows dynamic control of DA9061 supply voltages according to the operating point.
