DA9062 - Entry level PMIC

Product Overview

Dialog Semiconductor

Datasheet Details

Part number	DA9062
Manufacturer	Dialog Semiconductor
File Size	1.52 MB
Description	Entry level PMIC
Datasheet	DA9062 Datasheet

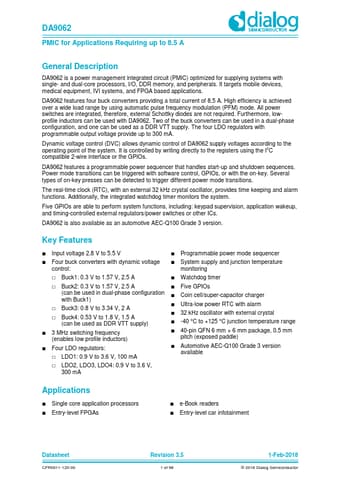

Additional preview pages of the DA9062 datasheet.

Product details

Description

DA9062 is a power management integrated circuit (PMIC) optimised for supplying systems with single- and dual-core processors, I/O, DDR memory, and peripherals.

Features

four buck converters providing a total current of 8.5 A. High efficiency is achieved over a wide load range by using automatic Pulse Frequency Modulation (PFM) mode. All power switches are integrated, therefore, external Schottky diodes are not required. Furthermore, lowprofile inductors can be used with DA9062. Two of the buck converters can be used in a dual-phase configuration, and one can be used as a DDR VTT supply. The four LDO regulators with programmable output voltage provide up to 300.
